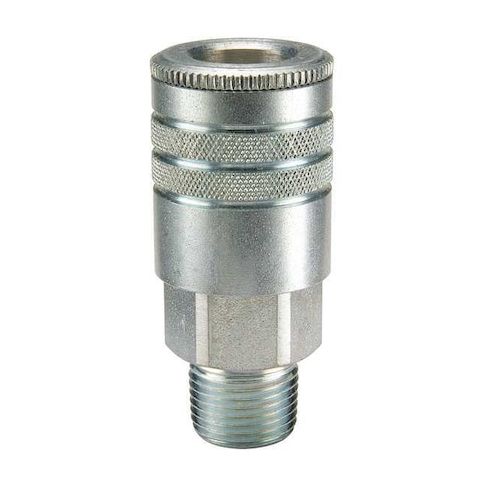

Coupler Body, Steel, MNPT, 1/4 In. Pipe MPN:24C
The Parker 24C Quick Connect Hose Coupling Socket is a reliable and efficient solution for pneumatic applications. Constructed from durable steel with a trivalent chrome finish, this coupling features a sleeve locking mechanism for easy connection and disconnection, as well as an integrated tubular valve for precise airflow control. Suitable for use in a variety of industries, including manufacturing, construction, and maintenance, this coupling offers a maximum working pressure of 300 psi and a flow rate of 1,415.84 L/min, making it an ideal choice for demanding applications. Its compact design and easy operation make it a valuable addition to any pneumatic system.
Top product features:
- The PARKER 24C hose coupling is for pneumatic applications.
- It supports connection and disconnection using a sleeve locking mechanism.
- It includes an integrated tubular valve to control airflow.
Top product applications:
- Pneumatic
- Industrial
- Hose Fitting
The PARKER - 24C hose coupling is for pneumatic applications. Constructed from steel with a trivalent chrome finish, it supports connection and disconnection using a sleeve locking mechanism, and includes an integrated tubular valve to control airflow. The coupling is compatible with 3/8 in body size fittings and 1/4 in hose fittings (per specified sizes), featuring a male hose fitting gender and NPT connection type. Maximum working pressure is 300 psi
- maximum flow rate is 1,415.84 L/min (as specified). The coupling temperature range is -40°F to 250°F (as specified). It uses nitrile seals (seal material: nitrile).
Key Features:
- - Application: Pneumatic
- - Connection Type: NPT
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Coupling Size: 3/8 in
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 1/4 in
- - Includes Valve: Yes (Tubular)
- - Interchange Type: Industrial
- - Material: Steel
- - Finish/Coating: Trivalent Chrome
- - Max. Flow Rate: 1,415.84 lpm
- - Max. Working Pressure @ 70°F: 300 psi
- - Max. Outside Diameter: 1 1/16 in
- - Overall Length: 2 3/8 in
- - Seal Material: Nitrile
- - Temperature Range: -40°F to 250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.70
- Package Width: 0.90
- Package Height: 0.90
- Package Weight: 0.25
