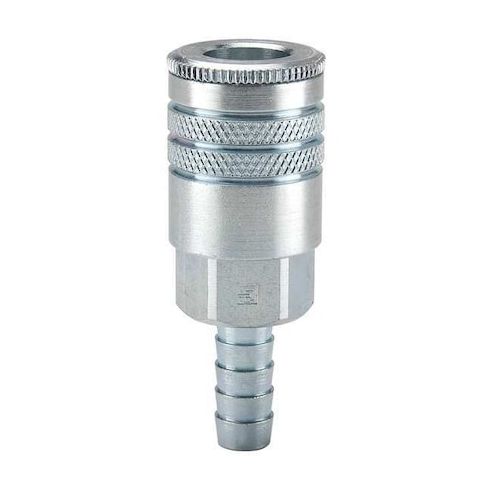

Coupler Body, Steel, Hose Barb, 50 cfm MPN:24-6B
The Parker 24-6B Coupler Body is a reliable and efficient solution for pneumatic applications, providing tool-free connection and disconnection via a sleeve locking mechanism. Ideal for use in air service systems, this coupling features a barbed hose barb connection for 1/2 in hose fitting size and compatibility with 1/2 in hose inner diameter. With a maximum flow rate of 1,415.84 liters per minute and a working pressure of 300 psi, this coupling is suitable for a wide range of applications, including pneumatic tools, valves, and cylinders, offering improved airflow control and reduced downtime.
Top product features:
- Tool-free connection and disconnection via a sleeve locking mechanism
- Barbed hose barb connection for 1/2 in hose fitting size
- Tubular valve for airflow control
Top product applications:
- Pneumatic
- Pneumatic systems (air service)
- Tool-free pneumatic applications
The PARKER - 24-6B is a hose coupling with a sleeve locking mechanism for tool-free connection and disconnection in pneumatic applications. It is intended for use in pneumatic systems (air service) when installed with compatible hose fittings and within specified pressure/temperature limits. It provides tool-free connection and disconnection via a sleeve locking mechanism. This coupling includes a barbed hose barb connection for 1/2 in hose fitting size and compatibility with 1/2 in hose inner diameter (per specifications). It includes a tubular valve for airflow control when used as intended in the pneumatic system. The coupling is rated for a maximum working pressure of 300 psi and a maximum flow rate of 1,415.84 liters per minute. It is rated for operation within its specified temperature range of -40°F to 250°F and within its specified maximum working pressure and flow rate.
Key Features:
- - Application: Pneumatic
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Coupling Size: 3/8 in
- - Barb Size: 1/2 in
- - Barbed Connection: Yes
- - Connection Type: Hose Barb
- - Hose Fitting Gender: Male
- - Hose Fitting Size: 1/2 in
- - Includes Valve: Yes (Tubular)
- - Material: Steel
- - Finish/Coating: Trivalent Chrome
- - Max. Flow Rate: 1,415.84 lpm
- - Max. Working Pressure @ 70°F: 300 psi
- - Max. Outside Diameter: 1 1/16 in
- - Overall Length: 2 5/8 in
- - Seal Material: Nitrile
- - Temperature Range: -40°F to 250°F
- - Interchange Type: Industrial
