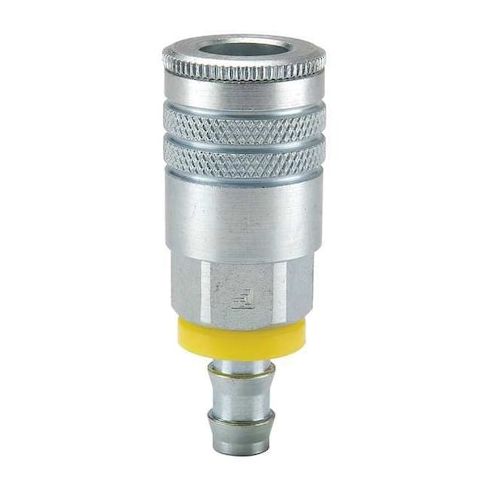

Coupler Body, Steel, Push On, 50 cfm MPN:24-5BP

The PARKER - 24-5BP hose coupling is designed for pneumatic applications. It provides connection and disconnection of hoses or equipment using a sleeve locking mechanism. Constructed from steel with a trivalent chrome finish, this coupling is compatible with 3/8 inch hose inner diameters and features a barbed male hose fitting. The coupling includes a tubular valve for air flow control and has a rated for a maximum working pressure of 300 psi at 70°F, rated maximum flow rate: 1,415.84 liters per minute. Compatible with pneumatic fluid/air line applications using 3/8 inch hose inner diameter and rated within the specified pressure and temperature ranges.

Key Features:

• - Application: Pneumatic
• - Hose Barb connection type with male fitting gender
• - Barb size and hose fitting size: 3/8 in
• - Coupling size and body quick connect air coupling size: 3/8"
• - Coupling component: Socket
• - Coupling locking type: Sleeve
• - Includes tubular valve for flow control
• - Material: Steel with trivalent chrome finish
• - Seal material: Nitrile
• - Rated for a maximum working pressure of 300 psi at 70°F
• - Rated maximum flow rate: 1,415.84 lpm
• - Temperature range: -40°F to 250°F
• - Overall length: 2.88 in
• - Max outside diameter: 1 1/16 in
• - Interchange type: Industrial
