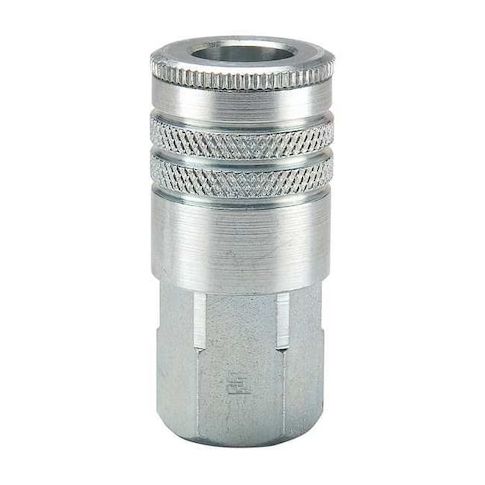

Coupler Body, Steel, FNPT, 1/2 In. Pipe MPN:25F
The Parker 25F Coupler Body is a reliable and efficient solution for pneumatic applications, providing a tool-free connection and disconnection between hoses or equipment. Its socket coupling component with sleeve locking mechanism ensures a secure and leak-free connection, while the integrated tubular valve regulates airflow. Constructed from durable steel with a trivalent chrome finish, this coupler is suitable for use in industrial settings where high pressure and temperature fluctuations are common. Its compact design and high flow rate make it an ideal choice for a variety of applications, including air-line use, pneumatic tools, and equipment maintenance.
Top product features:
- Tool-free connection and disconnection between hoses or equipment
- Socket coupling component with a sleeve locking mechanism
- Integrated tubular valve for controlling flow
Top product applications:
- Pneumatic use
- Pneumatic air-line use
- Industrial applications
The PARKER - 25F is a quick connect hose coupling designed for pneumatic applications, providing a tool-free connection and disconnection between hoses or equipment. It features a socket coupling component with a sleeve locking mechanism, forming a connection with sealing components (Nitrile seal material) for pneumatic air-line use. The fitting includes an integrated tubular valve and is rated for operation at up to 300 psi at 70°F. Constructed from steel with a trivalent chrome finish, it is compatible with Industrial interchange standards with a maximum flow rate of 50 PCM.
Key Features:
- - Application: Pneumatic use
- - Body and coupling size: 3/8 in
- - Connection type: NPT thread
- - Hose fitting gender and size: Female, 1/2 in
- - Coupling component: Socket
- - Coupling locking type: Sleeve
- - Includes valve: Yes, tubular type
- - Material: Steel with trivalent chrome finish
- - Seal material: Nitrile
- - Maximum working pressure: 300 psi @ 70°F
- - Maximum flow rate: 50 PCM
- - Maximum outside diameter: 1 3/16 in
- - Overall length: 2 9/16 in
- - Temperature range: -40°F to 250°F
- - Thread size: 1/2" -14
- - Interchange type: Industrial
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 1.10
- Package Height: 2.50
- Package Weight: 0.35
