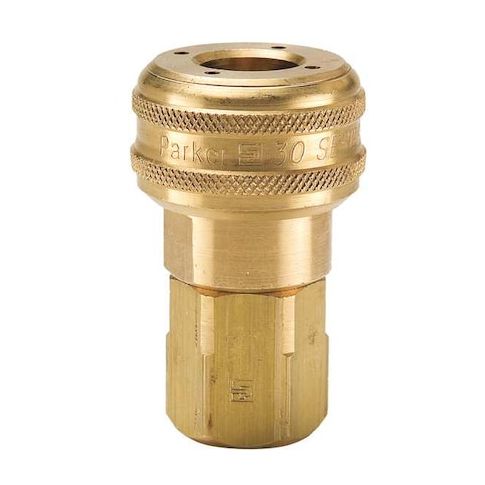

Coupler Body, Brass, 1/2 In. Pipe, 110 cfm MPN:B39F

The PARKER - B39F is a brass quick connect hose coupling designed for pneumatic applications. It features a female hose fitting with a 1/2 in connection size and utilizes a 3/4 in industrial interchange socket with NPT connection type. This coupling employs a push-to-connect locking mechanism and includes an integrated tubular valve to control air flow during connection and disconnection. It has a rated maximum flow rate of 3,114.85 liters per minute (lpm) and is rated for operation within -40°F to 250°F and up to 300 psi maximum working pressure (at 70°F, per specified rating).

Key Features:

• - Material: Brass construction.
• - Hose Fitting Gender and Size: Female, 1/2 in.
• - Coupling Size and Body Size: 3/4 in.
• - Connection Type: NPT thread standard.
• - Coupling Component: Socket.
• - Coupling Locking Type: Push-to-connect.
• - Valve Type: Tubular valve included.
• - Max Flow Rate: 3,114.85 lpm.
• - Max Working Pressure at 70°F: 300 psi.
• - Operating Temperature Range: -40°F to 250°F.
• - Seal Material: Nitrile.
• - Overall Length: 2.81 in.
• - Max Outside Diameter: 1.875 in.
