Coupler Body, Brass, 3/4 In. Pipe, 110 cfm MPN:B39

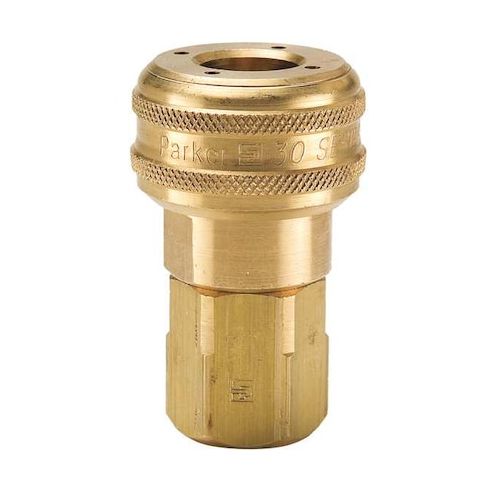

The Parker B39 Coupler Body is a reliable and efficient solution for pneumatic applications, offering rapid connection and disconnection with its push-to-connect locking mechanism. Constructed from durable brass, this female hose fitting features a 3/4 in size and NPT thread connection type, ensuring a secure and sealed connection. With a maximum flow rate of 110 PCM and a temperature range of -40°F to 250°F, this coupling component is ideal for use in a variety of industries, including manufacturing, construction, and oil and gas. Its compact design and tool-free operation make it a convenient and cost-effective choice for any pneumatic system.
Top product features:
- It features a female hose fitting with a 3/4 in size and utilizes an NPT thread connection type.
- It includes a tubular valve with a nitrile seal to provide a sealed connection when properly installed and tightened.
- It has a push-to-connect locking mechanism allowing rapid, tool-free connection and disconnection.
Top product applications:
- Pneumatic applications
- Pneumatic systems
- Air-powered equipment
The PARKER - B39 is a quick connect hose coupling designed for pneumatic applications. Constructed from brass, it features a female hose fitting with a 3/4 in size and utilizes an NPT thread connection type. This coupling component functions as a socket with a push-to-connect locking mechanism, allowing rapid, tool-free connection and disconnection. Integrated with a tubular valve, the fitting includes a nitrile seal to provides a sealed connection when properly installed and tightened to the specified NPT thread requirements. It supports a maximum flow rate of 110 PCM. The fitting is rated for operation within the specified temperature range of -40°F to 250°F.
Key Features:
- - Material: Brass
- - Application: Pneumatic
- - Hose Fitting Gender: Female
- - Hose Fitting Size and Coupling Size: 3/4 in
- - Connection Type: NPT
- - Coupling Component: Socket
- - Coupling Locking Type: Push-to-Connect
- - Includes Valve: Yes (Tubular Valve)
- - Seal Material: Nitrile
- - Max. Working Pressure: 300 psi @ 70°F
- - Max. Flow Rate: 110 PCM
- - Temperature Range: -40°F to 250°F
- - Overall Length: 2.94 in
- - Max. Outside Diameter: 1.875 in
- - Thread Size: 3/4"-14
