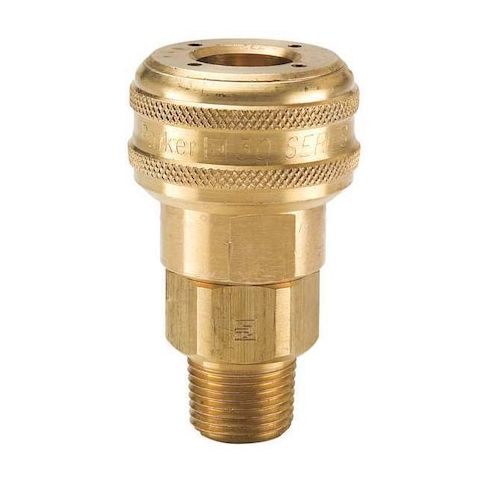

Coupler Body, Brass, 1 In. Pipe, 110 cfm MPN:B38J
The Parker B38J is a reliable and efficient brass quick connect hose coupling for pneumatic applications, providing a secure and tool-free connection and disconnection. With its integrated tubular valve, it ensures a sealed connection and controls airflow during connection and disconnection. Suitable for use in a wide range of industries, including manufacturing, construction, and oil and gas, this coupling is rated for operation in temperatures from -40°F to 250°F. Its compatibility with common pneumatic hose sizes and industrial interchange standards makes it a versatile and convenient solution for pneumatic systems.
Top product features:
- Push-to-connect locking mechanism allows for tool-free connection and disconnection.
- Integrated tubular valve provides control over airflow during connection and disconnection.
- Seal material made from nitrile for fluid-tight sealing when properly installed.
Top product applications:
- Pneumatic system connections for industrial equipment
- Air tool connections for pneumatic hammers and grinders
- Hose connections for pneumatic cylinders and actuators
The PARKER - B38J is a brass quick connect hose coupling for pneumatic applications. It supports push-to-connect coupling with tool-free connection and disconnection, using a push-to-connect locking mechanism (per design specifications). The coupling includes an integrated tubular valve and is intended to provide a sealed connection when installed using the specified coupling and hose requirements. It is compatible with the specified industrial interchange standards. It is rated for operation within -40°F to 250°F. The fitting features a 3/4 inch body and coupling size with a 1 inch hose fitting diameter, offering compatibility with common pneumatic hose sizes.
- Connection type: 1"–11-1/2 thread size, male hose fitting, NPT standard.
- Coupling component: Socket with push-to-connect locking.
- Seal material made from nitrile for intended fluid-tight sealing when properly installed.
- Overall length: 3.13 inches and maximum outside diameter of 1.875 inches.
- Includes a tubular valve to control airflow during connection and disconnection.
- Interchange type: Industrial compatibility standard.
