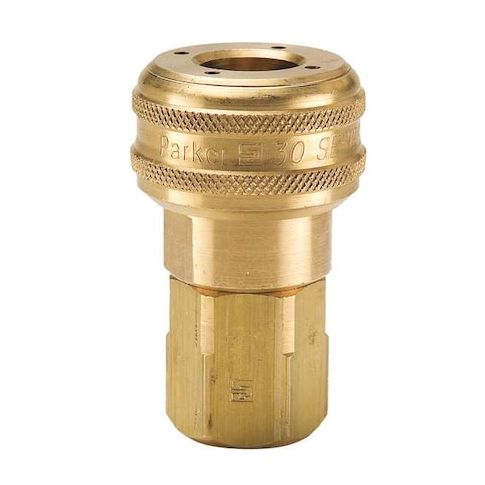

Coupler Body, Brass, 3/4 In. Pipe, 110 cfm MPN:B37G
The Parker B37G Coupler Body is a reliable and efficient solution for pneumatic systems. Its brass construction and nitrile seals ensure a leak-tight connection in compressed air line applications. The push-to-connect locking feature allows for easy connection and disconnection without hand tools, while the tubular valve provides flow control. Compatible with 1/2-inch industrial interchange connections, this coupler body is ideal for use in pneumatic systems, such as air tools, pneumatic cylinders, and pneumatic actuators. Its compact design and reliable performance make it a valuable addition to any pneumatic system, providing consistent and precise air flow.
Top product features:
- The product supports push-to-connect locking for connection and disconnection without hand tools.
- It includes a tubular valve for flow control.
- It features a brass construction with nitrile seals for sealing in compressed air line applications.
Top product applications:
- Pneumatic systems
- Compressed air line applications
- Industrial applications
The PARKER - B37G supports push-to-connect locking for connection and disconnection without hand tools. It includes a tubular valve for flow control. Its brass construction and nitrile seals formed connection using nitrile seals for sealing in compressed air line applications, rated for compressed air/pneumatic line service. Compatible with 1/2-inch industrial interchange connections (per specified interchange requirements). It has a female hose fitting sized at 3/4 inch with a 3/4"-14 thread size.
Key Features:
- - Connection type: NPT with a female hose fitting
- - Coupling component: Socket
- - Hose fitting size: 3/4 in and thread size 3/4"-14
- - Includes tubular valve for flow control
- - Material: Brass body with nitrile seal
- - Maximum outside diameter: 1.5 inches
- - Overall length: 3.13 inches
- - Application: Pneumatic systems
- - Interchange type: Industrial
- - Barbed fitting: No
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.10
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.75
