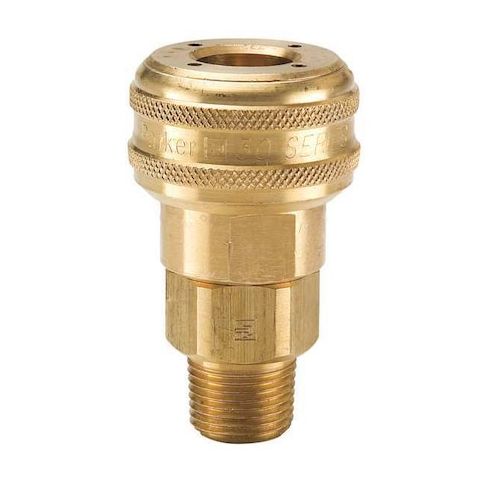

Coupler Body, Brass, 3/8 In. Pipe, 110 cfm MPN:B36E

The PARKER - B36E is a hose coupling with push-to-connect locking mechanism designed for pneumatic applications. It allows for connection and disconnection using a push-to-connect locking mechanism (no tools required). Brass body with nitrile seals for sealed connection when installed in accordance with applicable specifications and with compatible fittings. It includes an integrated tubular valve to control flow and is compatible with specified industrial interchange configurations (as applicable to the 3/8 in hose fitting size and 1/2 in coupling size). Its overall length is 2.88 in with a maximum outside diameter of 1.5 in, and it is rated maximum working pressure: 300 psi at 70°F and rated maximum flow rate: 3,114.85 liters per minute.

Key Features:

• - Application: Pneumatic
• - Material: Brass
• - Seal Material: Nitrile
• - Hose Fitting Gender: Male
• - Hose Fitting Size: 3/8 in
• - Connection Type: NPT
• - Thread Size: 3/8"-18
• - Coupling Component: Socket
• - Coupling Size: 1/2 in
• - Coupling Locking Type: Push-to-Connect
• - Includes Valve: Yes (Tubular)
• - Interchange Type: Industrial
• - Max. Working Pressure @ 70°F: 300 psi
• - Max. Flow Rate: 3,114.85 lpm
• - Max. Outside Diameter: 1 1/2 in
• - Overall Length: 2.88 in
• - Temperature Range: -40°F to 250°F
