Coupler Body, Brass, FNPT, 3/8 In. Pipe MPN:B35
Coupler Body, Brass, FNPT, 3/8 In. Pipe

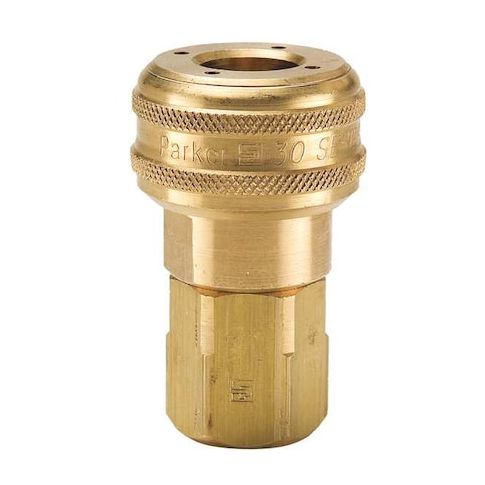

The PARKER - B35 is a hose coupling for pneumatic applications featuring a push-to-connect locking mechanism operable without tools. The coupling features brass construction and a tubular valve type integrated into the design to control fluid or air flow. It is intended to form a sealed connection when installed with compatible hoses and fittings using 3/8 in nominal size and female hose fittings (per specified connection details). Rated for maximum flow rate of 50 PCM and rated for maximum working pressure of 300 psi at 70°F. Rated for operation within -40°F to 250°F. Seal material: nitrile.
Key Features:
- Application: Pneumatic
- Connection Type: 3/8"-18 NPT thread size
- Coupling Component: Socket
- Coupling Locking Type: Push-to-Connect
- Coupling Size: 3/8 in
- Hose Fitting Gender: Female
- Hose Fitting Size: 3/8 in
- Includes Valve: Yes, tubular type
- Material: Brass
- Max. Flow Rate: 50 PCM
- Max. Working Pressure @ 70°F: 300 psi
- Max. Outside Diameter: 1 3/8 in
- Overall Length: 2.31 in
- Seal Material: Nitrile
- Temperature Range: -40°F to 250°F
- Interchange Type: Industrial
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.20
- Package Width: 1.10
- Package Height: 2.00
- Package Weight: 0.40
Product info last updated on February 8, 2026 11:30am UTC
