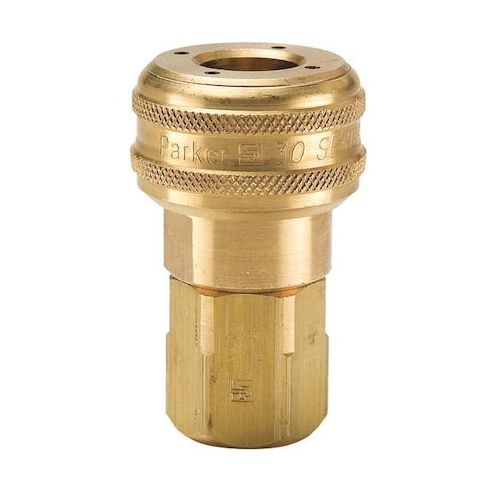

Coupler Body, Brass, FNPT, 1/8 In. Pipe MPN:B33A
The Parker B33A Coupler Body is a reliable and efficient push-to-connect hose coupling designed for pneumatic applications. Its brass construction and nitrile seals ensure a secure sealing interface for pneumatic/air service, while the push-to-connect locking mechanism provides tool-free hose connection and disconnection. Ideal for use in various industries, including manufacturing, oil and gas, and medical, this coupling features a maximum working pressure of 300 psi and a maximum flow rate of 707.92 liters per minute. Its compact size and versatility make it a great solution for applications requiring quick and easy hose connections and disconnections.
Top product features:
- Push-to-connect locking mechanism for tool-free hose connection and disconnection of hoses or equipment.
- Includes an integral tubular valve to control flow.
- Constructed from brass with nitrile seals and provides a sealing interface for pneumatic/air service.
Top product applications:
- Pneumatic system components such as air tools and pneumatic cylinders
- Pneumatic testing equipment and air pressure gauges
- Air-powered machinery and equipment such as air compressors and pneumatic pumps
The PARKER - B33A is a push-to-connect hose coupling designed for pneumatic applications, Provides a push-to-connect locking mechanism for tool-free hose connection and disconnection of hoses or equipment. Constructed from brass with nitrile seals and provides a sealing interface for pneumatic/air service. This fitting features a push-to-connect locking mechanism and includes a socket coupling component within the Industrial interchange standard, Hose fitting size: 1/4 inch
- coupling size: 1/4 inch
- female hose fitting gender. Maximum working pressure: 300 psi at 70°F and a maximum flow rate of 707.92 liters per minute, Operating temperature range: -40°F to 250°F.
Key Features:
- - Material: Brass body with nitrile seal for sealing.
- - Valve: Includes integral tubular valve to control flow.
- - Connection Type: Female NPT thread size 1/8"-27.
- - Coupling Size and Hose Fitting Size: 1/4 inch.
- - Coupling Component: Socket.
- - Locking Mechanism: Push-to-connect for quick and tool-free operation.
- - Interchange Type: Industrial standard for compatibility.
- - Max. Working Pressure: 300 psi at 70°F.
- - Max. Flow Rate: 707.92 liters per minute.
- - Temperature Range: -40°F to 250°F operating temperature.
- - Overall Length: 1.94 inches.
- - Maximum Outside Diameter: 1.19 inches.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.30
- Package Height: 2.00
- Package Weight: 0.30
