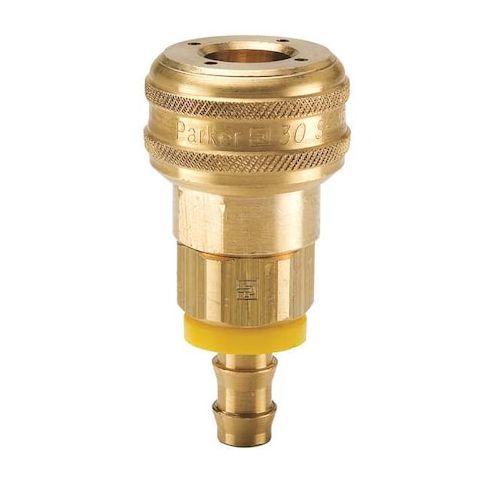

Coupler Body, Brass, Push On, 25 cfm MPN:B30-5BP
Coupler Body, Brass, Push On, 25 cfm
The PARKER - B30-5BP is a quick connect hose coupling designed for pneumatic applications. It features a push-to-connect locking mechanism that enables connection and disconnection using a push-to-connect mechanism without tools, forming a sealed connection when installed and used within the specified pressure and temperature ratings. Constructed from brass with nitrile seals, it supports hose barb connections. The coupling includes an integrated tubular valve for flow control and conforms to the Industrial interchange standard. Rated for operation within -40°F to 250°F.
Key Features:
- - Material: Brass body with nitrile (NBR) seal.
- - Application: Pneumatic use.
- - Connection type: Hose barb, male fitting with 3/8 in barb size designed for 3/8 in hose I.D.
- - Coupling size and body size: 1/4 in.
- - Locking type: Push-to-connect mechanism.
- - Includes tubular valve for controlling air flow.
- - Rated maximum working pressure: 300 psi (at 70°F).
- - Rated maximum flow rate: 707.92 liters per minute.
- - Overall length of 2.63 in and maximum outside diameter of 1.188 in.
- - Interchange type: Industrial standard.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.90
- Package Height: 0.60
- Package Weight: 0.30
Product info last updated on February 5, 2026 9:37am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
