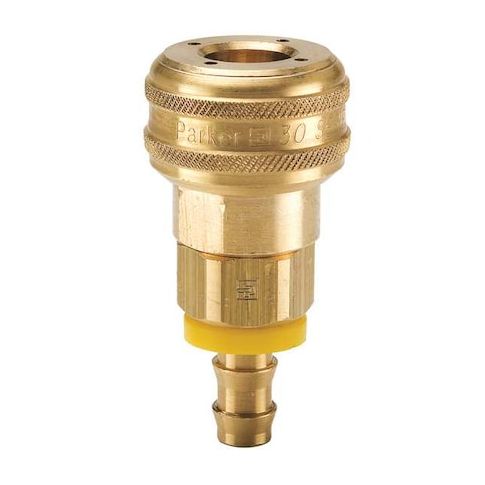

Coupler Body, Brass, Push On, 25 cfm MPN:B30-3BP
The Parker B30-3BP is a reliable and efficient brass quick connect hose coupling designed for pneumatic applications. Its push-to-connect mechanism makes it easy to connect and disconnect 1/4 in inner diameter hoses, while the tubular valve provides controlled airflow and a sealed connection. Suitable for industrial use, this coupling supports hose barb connections and is compatible with specified interchange standards. Its brass construction ensures durability and resistance to corrosion, making it ideal for applications in harsh environments, such as manufacturing, construction, and maintenance. With a maximum working pressure of 300 psi and a temperature range of -40°F to 250°F, this coupling is a versatile solution for pneumatic systems.
Top product features:
- Push-to-Connect mechanism for easy connection and disconnection of hoses
- Tubular valve for controlling airflow and providing a sealed connection
- Includes a nitrile seal for reliable and leak-free performance
Top product applications:
- Pneumatic use
- Hose barb connections
- Industrial applications
The PARKER - B30-3BP is a brass quick connect hose coupling designed for pneumatic applications. It features a push-to-connect mechanism for connection and disconnection of 1/4 in inner diameter hoses. This coupling includes a tubular valve for controlling airflow and provides a sealed connection (seal material: nitrile)
- is compatible with specified industrial interchange standards. It supports hose barb connections with male fitting gender for attachment to 1/4 in hose barbs (male fitting gender).
Key Features:
- - Material: Brass construction
- - Application: Pneumatic use
- - Connection Type: Push Hose Barb
- - Hose Fitting Gender: Male
- - Hose Fitting Size and Barb Size: 1/4 in
- - Coupling Size and Body Size: 1/4"
- - Includes Valve: Yes, tubular type
- - Coupling Locking Type: Push-to-Connect
- - Seal Material: Nitrile
- - Max. Working Pressure @ 70°F: 300 psi
- - Max. Flow Rate: 707.92 lpm
- - Temperature Range: -40°F to 250°F
- - Overall Length: 2.44 in
- - Max. Outside Diameter: 1 3/16 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 1.30
- Package Height: 2.50
- Package Weight: 0.25
