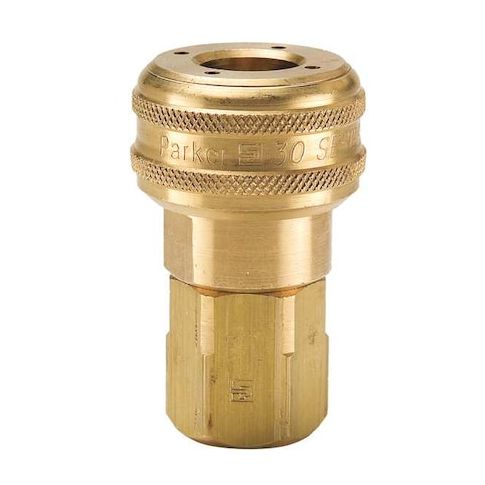

Coupler Body, Brass, FNPT, 1/4 In. Pipe MPN:B33
The Parker B33 Coupler Body is a reliable and efficient solution for pneumatic applications, offering push-to-connect operation for easy connection and disconnection without tools. Constructed from durable brass with nitrile seals, it forms a sealed connection for pneumatic air flow within specified pressure and temperature ranges. Rated for a maximum working pressure of 300 psi at 70°F and a temperature range of -40°F to 250°F, it's ideal for use in pneumatic systems, including air tools, pneumatic cylinders, and pneumatic valves. With its compact 1/4-inch body size and tubular valve, it's perfect for applications requiring precise air flow control and quick connections.
Top product features:
- Push-to-connect locking mechanism allows for easy connection and disconnection without tools.
- Tubular valve controls air flow for adjustable pressure management.
- Nitrile seals create a sealed connection for pneumatic air flow within specified pressure/temperature ranges.
Top product applications:
- Pneumatic applications
- Pneumatic
- Pneumatic
The PARKER - B33 is a quick connect hose coupling designed for pneumatic applications, is configured for push-to-connect operation for connection and disconnection without tools. Constructed from brass with nitrile seals, it forms a sealed connection for pneumatic air flow (when properly installed and within specified pressure/temperature ranges). The coupling uses a push-to-connect locking mechanism (rated parameters: 300 psi @ 70°F
- temperature range -40°F to 250°F) and includes a tubular valve to control air flow. It is rated for a maximum working pressure of 300 psi @ 70°F and has a rated temperature range of -40°F to 250°F, intended for pneumatic applications. The coupling has a 1/4 inch body size and hose fitting size, with a female hose fitting gender and a 1/4"-18 thread size with NPT connection type.
Key Features:
- - Application: Pneumatic
- - Material: Brass
- - Coupling component: Socket
- - Coupling locking type: Push-to-Connect
- - Includes valve: Yes, tubular type
- - Rated maximum flow rate: 25 pcm
- - Maximum working pressure: 300 psi @ 70°F
- - Overall length: 1.94 inches
- - Maximum outside diameter: 1.188 inches
- - Seal material: Nitrile
- - Temperature range: -40°F to 250°F
- - Connection type: Female NPT, 1/4"-18 thread size
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.00
- Package Height: 0.60
- Package Weight: 0.25
