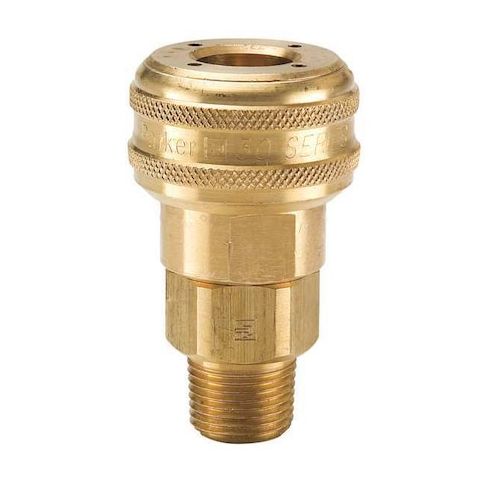

Coupler Body, Brass, MNPT, 3/8 In. Pipe MPN:B32E
Streamline your pneumatic applications with the PARKER B32E Coupler Body. This quick connect hose coupling enables rapid connection and disconnection of 1/4 inch hoses or equipment using a push-to-connect locking mechanism. Made of brass with nitrile seals, it features an integrated tubular valve to control air flow, ensuring precise regulation of pressure. Ideal for use in pneumatic applications, it meets Industrial interchange standard requirements and is compatible with a wide range of equipment. With a maximum working pressure of 300 psi @ 70°F, it's perfect for use in a variety of industries, including manufacturing, construction, and more.
Top product features:
- It enables rapid connection and disconnection of hoses or equipment using a push-to-connect locking mechanism.
- It features an integrated tubular valve to control air flow.
- It is rated for use at up to the specified maximum working pressure.
Top product applications:
- Pneumatic tool applications such as pneumatic drills and sanders
- Air compressor systems for powering pneumatic tools
- Automotive and industrial air brake systems
The PARKER - B32E is a quick connect hose coupling designed for pneumatic applications. It enables rapid connection and disconnection of 1/4 inch hoses or equipment using a push-to-connect locking mechanism. Made of brass with nitrile seals, this socket component features an integrated tubular valve to control air flow. The fitting is rated for use at up to the specified maximum working pressure (300 psi @ 70°F) and is compatible with pneumatic applications using the integrated tubular valve for controlled air flow. The fitting’s maximum working pressure: 300 psi @ 70°F and it has a maximum flow rate: 707.92 liters per minute. It has a 3/8"-18 thread size and meets the Industrial interchange standard requirements.
Key Features:
- - Body and coupling size: 1/4 inch
- - Hose fitting: Male, 1/4 inch size
- - Connection type: NPT thread
- - Coupling component: Socket
- - Locking type: Push-to-connect
- - Material: Brass with nitrile seal
- - Includes tubular valve to regulate flow
- - Maximum working pressure: 300 psi @ 70°F
- - Operating temperature range: -40°F to 250°F
- - Overall length: 2.19 inches
- maximum outside diameter: 1.19 inches
- - Interchange compatibility: Meets the Industrial interchange standard requirements
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.20
- Package Height: 1.20
- Package Weight: 0.30
