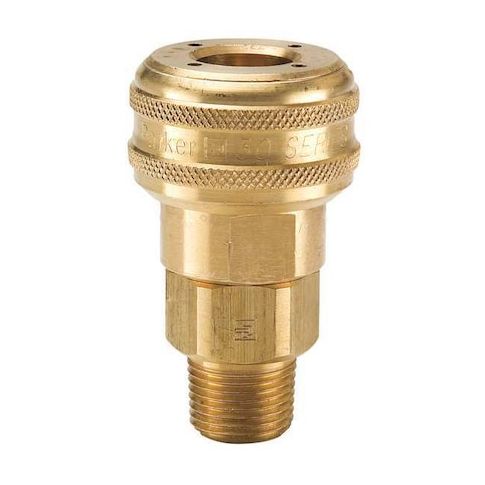

Coupler Body, Brass, MNPT, 1/4 In. Pipe MPN:B32

• The PARKER - B32 is intended for use in pneumatic systems, supporting connection and disconnection using a push-to-connect locking mechanism. It features a push-to-connect locking mechanism with a socket-type coupling component and is compatible with 1/4 in hose sizes and NPT threaded connections. The fitting includes an integrated tubular valve that regulates airflow and is made of brass, and is compatible with compressed air line connections as specified (1/4 in hose size and 1/4”-18 NPT male thread). It has an operating temperature range of -40°F to 250°F and has a maximum working pressure rating of 300 psi @ 70°F.




  • - Application: Pneumatic
  • - Thread Size: 1/4"-18 NPT male
  • - Coupling Size and Body Size: 1/4 inch
  • - Hose Fitting Gender: Male
  • - Coupling Component: Socket
  • - Coupling Locking Type: Push-to-Connect
  • - Includes Valve: Yes
  • Valve Type: Tubular
  • - Material: Brass
  • - Seal Material: Nitrile
  • - Max. Flow Rate: 25 pcm
  • - Max. Working Pressure @ 70°F: 300 psi
  • - Maximum Outside Diameter: 1 3/16 in
  • - Overall Length: 2 3/16 in
  • - Temperature Range: -40°F to 250°F
  • - Barbed: No
  • - Interchange Type: Industrial
