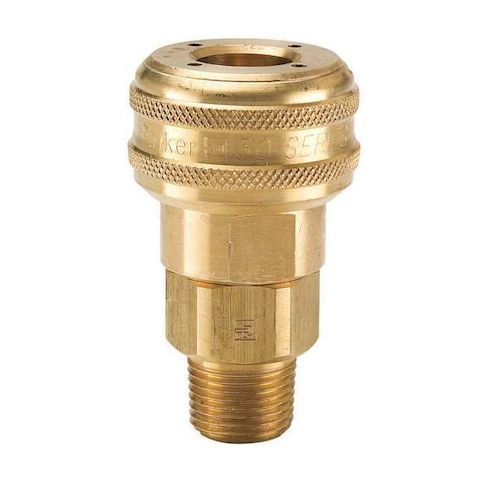

Coupler Body, Brass, MNPT, 1/2 In. Pipe MPN:B34F
The PARKER B34F Coupler Body is a reliable and efficient push-to-connect hose coupling designed for pneumatic applications. Its brass construction and nitrile seals ensure leak resistance and durability, while the tubular valve provides control over airflow. Compatible with industrial interchange standards, this coupling is ideal for use in a variety of settings, including manufacturing, construction, and maintenance. Its compact design and ease of use make it an excellent choice for applications where quick connections and disconnections are necessary, such as in pneumatic systems, air tools, and pneumatic cylinders.
Top product features:
- Push-to-connect locking mechanism for connecting and disconnecting pneumatic hoses, providing a sealed connection
- Made of brass with nitrile seals for leak resistance
- Includes a tubular valve to control airflow
Top product applications:
- Pneumatic applications
- Pneumatic hose connections
- Industrial pneumatic systems
The PARKER - B34F is a push-to-connect hose coupling for pneumatic applications. push-to-connect locking mechanism for connecting and disconnecting pneumatic hoses, providing a sealed connection
- leak resistance is dependent on proper installation and system conditions. made of brass with nitrile seals. It includes a tubular valve to control airflow and is compatible with industrial interchange standards. Compatible with 1/2 in hose fitting size
- 3/8 in coupling size
- Male NPT 1/2"-14 connection thread.
Key Features:
- - Application: Pneumatic
- - Material: Brass with nitrile seal
- - Coupling size: 3/8 in
- - Hose fitting gender: Male
- - Hose fitting size: 1/2 in
- - Connection type: Male NPT 1/2"-14 thread
- - Coupling component: Socket
- - Coupling locking type: Push-to-Connect
- - Includes valve: Yes, tubular valve type
- - Max. working pressure: rated max. working pressure of 300 psi at 70°F
- - Max. flow rate: rated max. flow rate of 1,415.84 L/min
- - Operating temperature range: rated operating temperature range of -40°F to 250°F
- - Overall length: 2.50 in
- - Max. outside diameter: 1 3/8 in
- - Interchange type: Industrial
