Coupler Body, Brass, Push On, 50 cfm MPN:B34-5BPN

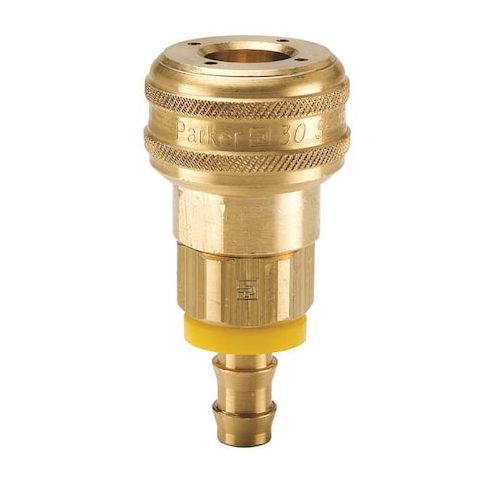

The Parker B34-5BPN Coupler Body is a reliable and efficient solution for pneumatic applications. Its push-to-connect locking mechanism simplifies hose changes, reducing downtime and increasing productivity. With a 50 cfm flow rate and maximum working pressure of up to 250°F, this coupling is suitable for a wide range of applications, including manufacturing, construction, and material handling. Its brass construction ensures durability and resistance to corrosion, while the included tubular valve allows for easy flow control. Ideal for use in pneumatic systems, this coupler body provides a secure and reliable connection for hoses, ensuring smooth operation and minimizing maintenance.
Top product features:
- Push-to-connect locking mechanism for connection and disconnection of hoses.
- Hose barb connection type with a male fitting suitable for 3/8 inch hose inner diameter.
- Tubular valve allows flow when connected and restricts flow when disconnected.
Top product applications:
- Pneumatic
- Pneumatic
- Pneumatic
The PARKER - B34-5BPN is a hose coupling for pneumatic applications. It provides push-to-connect locking mechanism for connection and disconnection of hoses with a push-to-connect locking mechanism, facilitating efficient hose changes. This coupling features a hose barb connection type with a male fitting, suitable for 3/8 inch hose inner diameter. The included tubular valve allows flow when connected and restricts flow when disconnected. Body constructed from brass, it is rated for pneumatic service at up to the specified maximum working pressure and temperature range when installed in accordance with manufacturer instructions.
Key Features:
- - Application: Pneumatic
- - Body size and coupling size: 3/8 in
- - Hose fitting size and barb size: 3/8 in
- - Connection type: Hose Barb
- - Hose fitting gender: Male
- - Includes valve: Yes, tubular valve type
- - Coupling component: Socket
- - Coupling locking type: Push-to-Connect
- - Maximum flow rate: 1,415.84 lpm
- - Seal material: Nitrile
- - Temperature range: -40°F to 250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 1.50
- Package Height: 1.50
- Package Weight: 0.40
