Coupler Body, Brass, MNPT, 3/8 In. Pipe MPN:B34

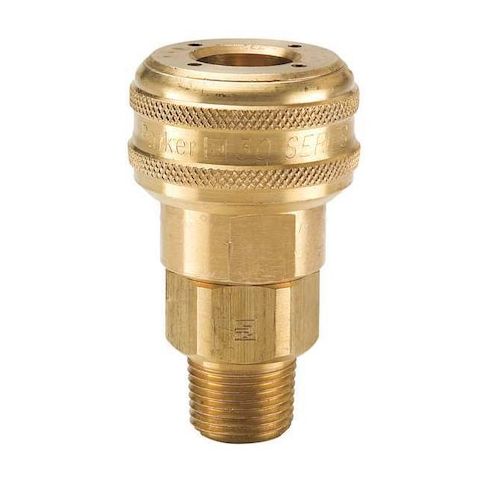

The PARKER - B34 is a hose coupling with push-to-connect locking mechanism for pneumatic hose connections. It is used for pneumatic hose connections using a push-to-connect locking mechanism and provides connection and disconnection using a push-to-connect locking mechanism. Constructed of brass with nitrile seals, this coupling includes an integrated tubular valve for regulating flow through the coupling. It includes an integrated tubular valve to control air flow. It meets the Industrial interchange standard requirements (per the specified interchange standard). Connection interfaces: 3/8 in male hose fittings and NPT thread size (as specified). Maximum working pressure: 300 psi at 70°F and temperature rating: -40°F to 250°F.

Key Features:

• - Body and coupling size: 3/8 in
• - Connection type: NPT thread with 3/8"-18 size
• - Coupling component: Socket
• - Coupling locking type: Push-to-Connect
• - Hose fitting gender: Male
• - Includes tubular valve to control flow
• - maximum flow rate: 1,415.84 liters per minute
• - Maximum outside diameter: 1 3/8 in
• - Overall length: 2.44 in
• - Seal material: Nitrile
• - application: pneumatic
