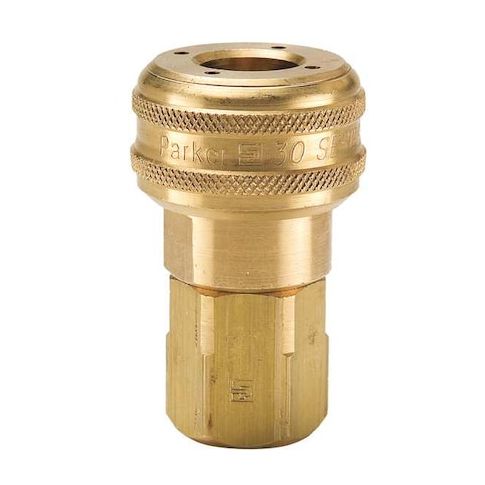

Coupler Body, Brass, FNPT, 3/8 In. Pipe MPN:B33E
The Parker B33E Coupler Body is a reliable and efficient pneumatic fitting designed for use in industrial applications. Its push-to-connect locking system allows for easy connection and disconnection without the need for hand tools, saving time and reducing labor costs. The fitting's tubular valve provides precise air flow control, while its brass construction and nitrile seals ensure durability and resistance to corrosion. Suitable for use in temperatures ranging from -40°F to 250°F, this fitting is ideal for applications such as pneumatic tool operation, air-powered equipment, and compressed air systems in manufacturing, construction, and other industries.
Top product features:
- Push-to-connect locking allows for connection and disconnection without hand tools.
- The fitting includes a tubular valve for air flow control.
- It is constructed from brass with nitrile seals for durability and resistance to corrosion.
Top product applications:
- Pneumatic use
- Industrial interchange
- Air hoses or equipment
The PARKER - B33E is a standard product name. It supports push-to-connect locking for connection and disconnection without hand tools (per design). The fitting is identified as an industrial interchange type per product specification and includes a tubular valve (integrated) for air flow control. Constructed from brass with nitrile seals, it has a maximum working pressure rating of 300 psi (at 70°F) and is rated for operation within -40°F to 250°F. Its 1/4 inch nominal size and female hose fitting design accommodate air hoses or equipment requiring this connection size.
Key Features:
- - Application: Pneumatic use
- - Material: Brass body with nitrile seal material
- - Connection Type: NPT thread with a 3/8"-18 thread size
- - Coupling Component: Socket
- - Coupling Locking Type: Push-to-connect
- - Hose Fitting Gender: Female
- - Hose Fitting Size: 1/4 in diameter
- - Includes Valve: Yes, tubular valve type
- - Interchange Type: Industrial
- - Max. flow rate: 707.92 liters per minute
- - Max. Working Pressure @ 70°F: 300 psi
- - Overall Length: 2 inches
- - Max. Outside Diameter: 1 3/16 inches
- - Temperature Range: -40°F to 250°F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.10
- Package Width: 1.10
- Package Height: 1.10
- Package Weight: 0.30
