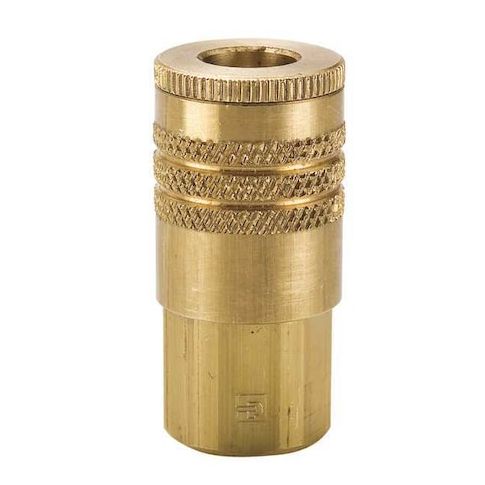

Coupler Body, Brass, FNPT, 1/4 In. Pipe MPN:B53
The Parker B53 Coupler Body is a reliable and efficient solution for pneumatic applications, enabling fast and tool-free connection and disconnection of hoses or equipment. Constructed from durable brass, it features a female hose fitting and NPT connection, making it suitable for a wide range of applications. With a temperature range of -40°F to 250°F and a maximum working pressure of 300 psi, it can handle demanding tasks. Ideal for use in industries such as manufacturing, construction, and healthcare, this coupler body provides a secure and leak-free connection, reducing downtime and increasing productivity.
Top product features:
- The PARKER B53 enables fast and tool-free connection and disconnection of hoses or equipment using a sleeve locking mechanism.
- It features an integrated tubular valve for controlling fluid flow.
- It is specified for use with a nitrile seal material for a secure connection.
Top product applications:
- Pneumatic
- Brass
- NPT
The PARKER - B53 is designed for pneumatic applications, enabling fast and tool-free connection and disconnection of hoses or equipment using a sleeve locking mechanism. Constructed from brass, it is specified for use with a nitrile seal material. The fitting includes an integrated tubular valve and features female hose fitting and NPT connection types. It has a specified temperature range of -40°F to 250°F and is rated for a maximum working pressure of 300 psi at 70°F.
Key Features:
- - Application: Pneumatic
- - Material: Brass
- - Connection Type: NPT
- - Seal Material: Nitrile
- - Coupling Component: Socket
- - Coupling Locking Type: Sleeve
- - Coupling and Hose Fitting Size: 1/4 in
- - Hose Fitting Gender: Female
- - Max Flow Rate: 25 pcm
- - Max Working Pressure @ 70°F: 300 psi
- - Overall Length: 1.81 in (1 13/16 in)
- - Max. Outside Diameter: 0.875 in (7/8 in)
- - Includes Valve: Yes
- Valve Type: Tubular
- - Temperature Range: -40°F to 250°F
- - Interchange Type: ARO
- - Thread Size: 1/4"-18
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.20
