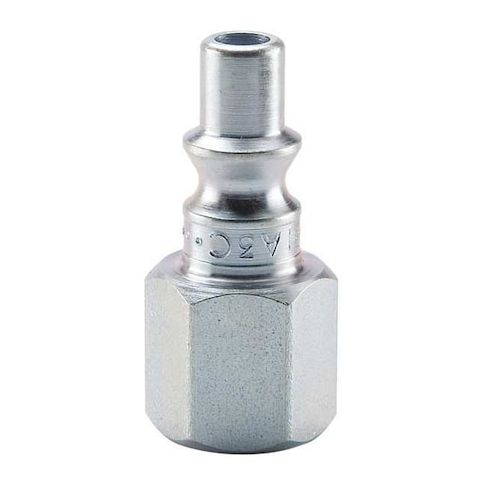

Coupler Plug, Steel, FNPT, 1/4 In. Pipe MPN:A3C

• The PARKER - A3C is a hose coupling for pneumatic applications. provides connection/disconnection using a sleeve locking mechanism. provides a sealed connection when installed and used with compatible fittings/hoses within the specified pressure and temperature ratings. made from steel with a trivalent chrome finish, this plug-type coupling features a 1/4-inch body and coupling size with female hose fitting and a 1/4-inch NPT threaded connection. rated maximum flow rate: 25 cfm

• rated maximum working pressure: 300 psi at 70°F
• rated operating temperature range: -40°F to 250°F.

  Key Features:


  • - Application: Pneumatic systems
  • - Body and coupling size: 1/4 in
  • - Connection type: 1/4 in NPT threaded female fitting
  • - Coupling component type: Plug with sleeve locking mechanism
  • - Material: Steel with trivalent chrome finish
  • - Max. flow rate: 25 cfm
  • - Max. working pressure @ 70°F: 300 psi
  • - Operating temperature range: -40°F to 250°F
  • - Overall length: 1.50 in
  • - Max. outside diameter: 3/4 in
  • - Interchange type: interchangeable with ARO-type couplings (based on stated interchange type)
  • - Does not include an integrated valve
