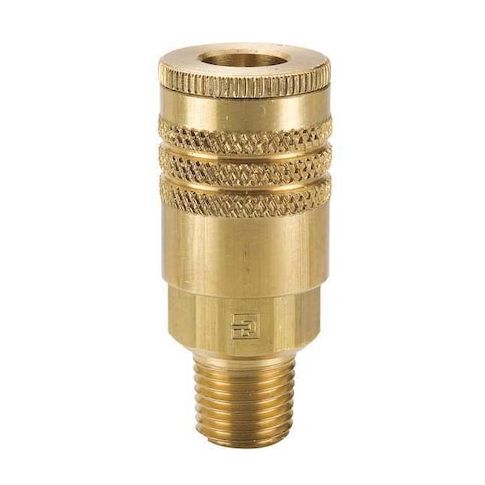

Coupler Body, Brass, MNPT, 1/4 In. Pipe MPN:B52
Streamline your pneumatic system connections with the PARKER B52 Coupler Body. This quick connect hose coupling features a sleeve locking mechanism, eliminating the need for tools and reducing downtime. Constructed from durable brass, it includes a tubular valve for a sealed interface and meets the ARO interchange standard. Ideal for use in pneumatic systems where tool-free connection/disconnection is crucial, this coupling is perfect for applications such as manufacturing, industrial equipment, and medical devices. With a maximum working pressure of 300 psi and operating temperature range of -40°F to 250°F, it provides reliable performance in a variety of environments.
Top product features:
- Sleeve locking mechanism for tool-free connection and disconnection
- Tubular valve provides a sealed interface when installed with compatible fittings
- Follows the ARO interchange standard for compatibility with other pneumatic systems
Top product applications:
- Pneumatic systems
- Pneumatic applications
- Hose connections
The PARKER - B52 is a quick connect hose coupling designed for pneumatic applications, featuring a sleeve locking mechanism for connection/disconnection without the use of tools. Constructed from brass, it includes a tubular valve and provides a sealed interface when installed with compatible fittings and within the specified pressure and temperature ranges. This coupling features a sleeve locking mechanism and follows the ARO interchange standard, is intended for use in pneumatic systems where tool-free connection/disconnection may reduce the time required to change hose connections. Rated maximum working pressure: 300 psi, and rated operating temperature range: -40°F to 250°F.
Key Features:
- - Hose fitting size and coupling size: 1/4 in
- - Connection type: Male NPT thread with 1/4"-18 thread size
- - Coupling component: Socket
- - Seal material: Nitrile
- - Maximum outside diameter: 7/8 in (maximum, as specified).
- - Overall length: 2.06 in (as specified).
- - Includes valve: Yes, tubular valve type
- - Coupling locking type: Sleeve
- - Application: Pneumatic
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.80
- Package Width: 0.80
- Package Height: 2.10
- Package Weight: 0.20
