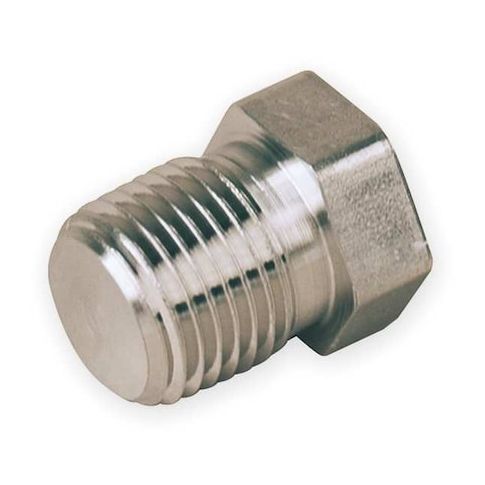

Hex Head Plug, 316L Stainless Steel, 3/4 in MNPT, 1-1/16 in Length, 6, 400 psi Max Pressure MPN:12 PH-SS
The Parker 12 PH-SS is a reliable and durable hex head plug designed for closing off the end of a pipe or port. Constructed from 316L stainless steel, this fitting provides excellent corrosion and temperature resistance, making it ideal for use in high-pressure and high-temperature applications. Its 3/4-inch MNPT threads ensure secure connections with standard piping systems. Suitable for use in industries such as oil and gas, chemical processing, and power generation, this plug is rated for operation up to 6,400 psi and temperatures ranging from -425 to 1200 °F, providing long-lasting performance and reliability.
Top product features:
- 316L stainless steel construction provides corrosion and temperature resistance.
- Cored plug construction allows for a secure seal when closed.
- Hex head design enables tightening or removal using a wrench.
Top product applications:
- Shut-off valve for high-pressure systems
- Pressure gauge protection
- Capping off a pipe for maintenance or repair
The PARKER - 12 PH-SS is a hex head plug stainless steel pipe fitting designed to close off the end of a pipe or port. It features a 3/4-inch nominal pipe size with male national pipe taper (MNPT) threads sized 3/4 in - 14, designed for use with standard MNPT threaded connections (3/4-14) and corresponding piping systems. Constructed from 316L stainless steel and finished with a bright surface, this fitting is rated for operation up to 6,400 psi and temperature range: -425 to 1200 °F. The plug has a cored construction and a hex head measuring 1-1/16 inches across flats, allowing it to be tightened or removed using a wrench. Its overall length is approximately 1.06 inches (1 1/16 in). Key Features:
- - Material: 316L stainless steel with bright finish for corrosion and temperature resistance
- - Fitting Type: Hex head plug with 3/4-inch MNPT threads (3/4 in - 14 thread size)
- - Nominal Pipe Size: 3/4 inch
- - Rated for operation up to 6,400 psi
- - Temperature range: -425 to 1200 °F
- - Overall Length: 1.06 inches (1 1/16 in)
- - Hex Size: 1-1/16 inches for wrenching
- - Construction: Cored plug
- - Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.90
- Package Height: 1.00
- Package Weight: 0.25
