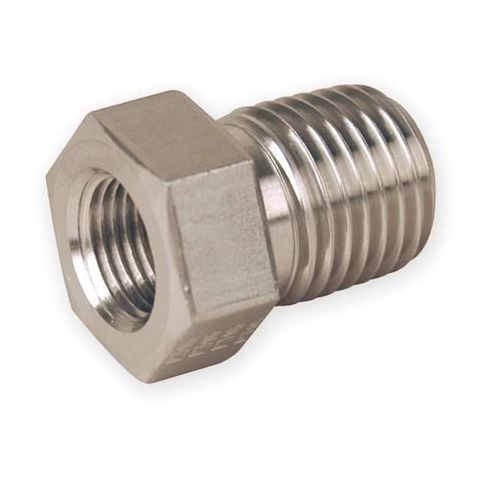

Reducing Bushing, 316 Stainless Steel, 3/4 in MNPT x 1/2 in FNPT, 1.17 in Length MPN:12-8 RB-SS

• The PARKER - 12-8 RB-SS is a reducing bushing made from 316 stainless steel that connects 3/4" male NPT to 1/2" female NPT

• 316 stainless steel construction. It features male and female NPT threaded connections, adapting from a 3/4" nominal pipe size on the male side to a 1/2" nominal pipe size on the female side. Applications: Air, Natural Gas, Oil
• Meets ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards. Temperature range: -425°F to 1200°F. Maximum Operating Pressure: 4,900 psi. Key Features:

  • - Material: 316 Stainless Steel
  • - Pipe Size: 3/4" (male NPT) x 1/2" (female NPT)
  • - Fitting Length: 1.17 in (overall length 1 1/8 in)
  • - Hex Size: 1-1/8" across flats for wrenching
  • - Maximum Operating Pressure: 4,900 psi
  • - Temperature Range: -425°F to 1200°F
  • - Connection Type: Male NPT on Side A, Female NPT on Side B
  • - Applications: Air, Natural Gas, Oil
  • - Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1
  • - Does not include pre-applied thread sealant or seals
