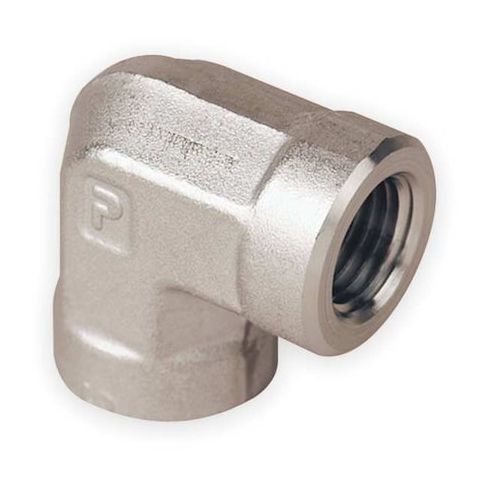

3/4" FNPT 316 SS 90 Degree Elbow MPN:12-12 FE-SS
Parker's 3/4in FNPT 316 SS 90 Degree Elbow is a high-performance pipe fitting designed for demanding applications. Suitable for use in air, natural gas, and oil systems, this fitting provides a reliable 90-degree change in flow direction while withstanding extreme temperatures from -425°F to 1200°F. Made from 316 stainless steel, it offers exceptional corrosion resistance and can handle high pressure. Its compact design and standard NPT threaded connections make it easy to install and integrate into existing systems. Ideal for use in industries such as oil and gas, power generation, and chemical processing, this fitting is a reliable solution for critical applications.
Top product features:
- The fitting is made from 316 stainless steel, providing corrosion resistance.
- The fitting features female NPT threaded connections on both ends.
- The fitting is rated for operation within a temperature range of -425 Degrees to 1200 Degrees Fahrenheit.
Top product applications:
- Air
- Natural Gas
- Oil Systems
The PARKER - 12-12 FE-SS is a 90 Degree Elbow stainless steel pipe fitting designed to connect two pipes and create a right-angle (90°) change in flow direction. Made from 316 stainless steel, it is suitable for applications involving air, natural gas, and oil, offering corrosion resistance and the ability to handle high pressure. It features female NPT threaded connections on both ends with a nominal size of 3/4 inch. The fitting is rated for operation within the specified pressure and temperature ranges and can withstand temperatures ranging from -425 Degrees to 1200 Degrees Fahrenheit. Its compact dimensions include an overall length of 2-11/16 inches and a pipe fitting length of 1.35 inches. Key Features:
- - Material: 316 Stainless Steel providing corrosion resistance
- - Connection type: Compatible with standard NPT threaded connections of 3/4 inch
- - Pressure rating: Rated for operation within the specified pressure and temperature ranges
- - Temperature range: -425 Degrees to 1200 Degrees Fahrenheit
- - Length: Overall length of 2-11/16 inches, pipe fitting length of 1.35 inches
- - Hex size for wrenching: 1-5/16 inches across flats
- - Applications: Compatible with air, natural gas, and oil systems
- - Standards: Meets ANSI B31.1, ANSI B31.3, ANSI B1.20.1
- - Does not include pre-applied thread sealant or additional sealing components
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.20
- Package Height: 1.50
- Package Weight: 0.60
