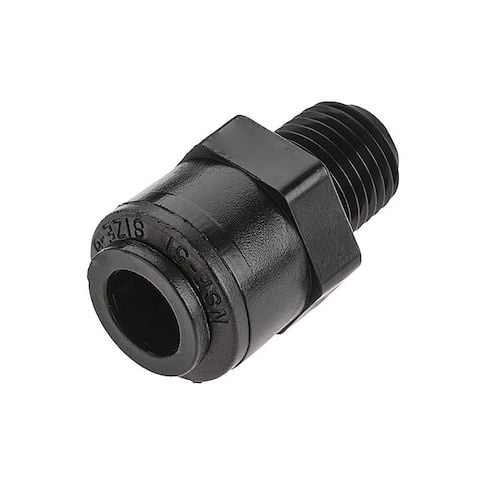

3/8" Push x 1/4" MNPT Kynar Check Valve MPN:FB6MCVC4-HBLK-05
This Parker Kynar Check Valve is a reliable solution for various applications, including HVAC, plumbing, and process control systems. Its single flow design and inline spring mechanism ensure efficient fluid flow while preventing backflow. The valve's 3/8in push connection and 1/4in MNPT fitting make it easy to install and integrate with existing systems. With a cracking pressure of 0.5 psi and a maximum temperature rating of 250°F, this check valve can handle a wide range of operating conditions. Ideal for applications where backflow prevention is critical, this valve provides a durable and long-lasting solution for various industries.
Top product features:
- Inline design for easy installation
- Fluorocarbon seals for reliable and long-lasting performance
- Stainless steel spring for increased durability
Top product applications:
- Steam Power Systems
- Chemical Processing Plants
- Oil and Gas Industry
PARKER FB6MCVC4-HBLK-05 is an inline spring check valve with a single-flow design and poppet check mechanism for systems handling compatible corrosive media within the valve’s material, pressure, and temperature ratings. It features a Kynar body, a 3/8 in push connection on one side, a 1/4 in male NPT connection on the other, and a 0.5 psi cracking pressure. The valve can be mounted horizontally or vertically.
Key Features:
- Valve type: Inline spring check valve
- Flow design: Single-flow
- Application/media: Compatible corrosive media within the valve’s material, pressure, and temperature ratings
- Body material: Kynar
- Check mechanism: Poppet
- Connection type: 3/8 in tube push x 1/4 in MNPT
- Connection genders: Female side 1, male side 2
- Maximum operating pressure: 150 psi
- Temperature range: 0 Degrees F to 250 Degrees F
- Seal and seat material: Fluorocarbon/FKM
- Spring material: 302 stainless steel
- Mounting orientation: Horizontal or vertical
- Full flow: Yes
- Standards: NSF 51, NSF 61, RoHS
- Valve series: Truseal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 0.80
- Package Height: 1.50
- Package Weight: 0.01
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
