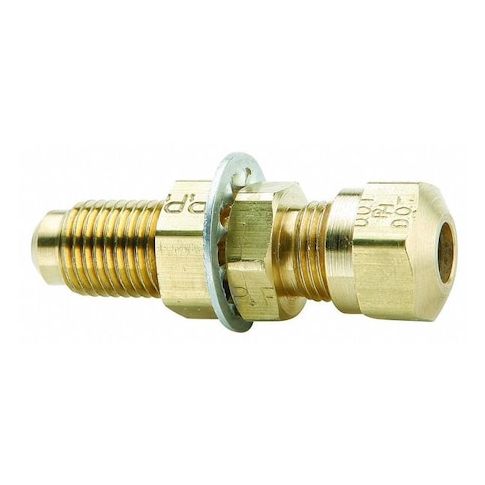

Union, Brass, Comp.1/4in, Flared1/4in MPN:62NFBH-4
Union, Brass, Comp.1/4in, Flared1/4in
Parker's Union, Brass, Comp.1/4in, Flared1/4in fitting is a reliable and versatile component for air system applications. Its 45-degree flared design ensures a secure connection, while the brass material provides excellent durability and resistance to corrosion. With a maximum operating pressure of 150 psi and temperature of 200°F, this fitting is suitable for a wide range of industries, including manufacturing, oil and gas, and aerospace. Its compact size and easy installation make it an ideal choice for applications where space is limited, such as in aircraft and automotive systems.
Top product features:
- Flared connection for easy attachment to 1/4 inch tubing
- 45 degree flare angle for secure and reliable connections
- Compression connection on one side for versatile fitting options
Top product applications:
- Air
- Compressed Air Systems
- Industrial Air Systems
Flared Fitting Union, Fitting Material Brass, Flare Angle 45 Degrees , Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Flared, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Fitting Thread Size 7/16 In.-24, Hex Size 9/16 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 7/8 in, Specific Fitting Shape Straight Bulkhead Union, Standards SAE J1131, SAE J246
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.90
- Package Width: 0.90
- Package Height: 0.90
- Package Weight: 0.08
Product info last updated on March 8, 2026 10:25pm UTC
Category: Automotive Brakes, Steering and Suspension
