Elbow, Brass, Comp. 3/8 in, MNPT 1/4 in MPN:VS269NTA-6-2
Elbow, Brass, Comp. 3/8 in, MNPT 1/4 in

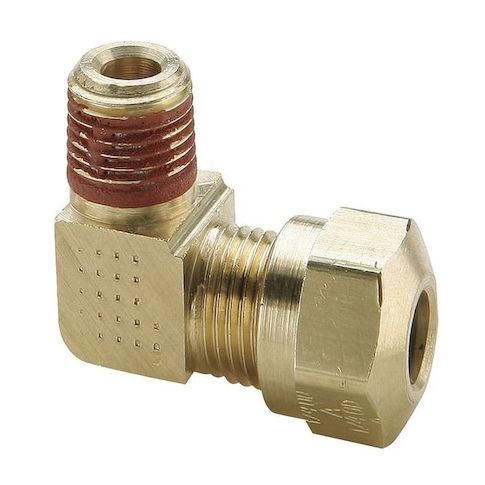

This brass compression elbow fitting from Parker is ideal for air applications, providing a reliable connection between tubes and pipes. With a maximum operating pressure of 150 psi and temperature of 200°F, it's suitable for a variety of industries, including manufacturing and HVAC. The fitting's compact design and 90-degree bend make it perfect for tight spaces, while its CA360 material grade ensures durability and resistance to corrosion. Its MNPT connection on one end and compression fitting on the other provide a secure and easy-to-use connection, making it a valuable addition to any pneumatic system.
Top product features:
- 90-degree elbow adapter connects two tubes at a right angle
- Compression fitting allows for easy installation and removal of the elbow
- Maximum operating pressure of 150 psi and maximum operating temperature of 200 Degrees F enable safe use in various applications
Top product applications:
- Air line fittings
- Industrial pneumatic systems
- Hydraulic systems
Compression Fitting Elbow, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/8 in, Material Grade CA360, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 3/16 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/8 in, Compatible Fitting Brands Parker Hannifin, Thread Size B 17/32-24, Series NTA
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.30
- Package Height: 0.60
- Package Weight: 0.10
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on February 13, 2026 11:18pm UTC
Category: Automotive Service and Shop Tools
