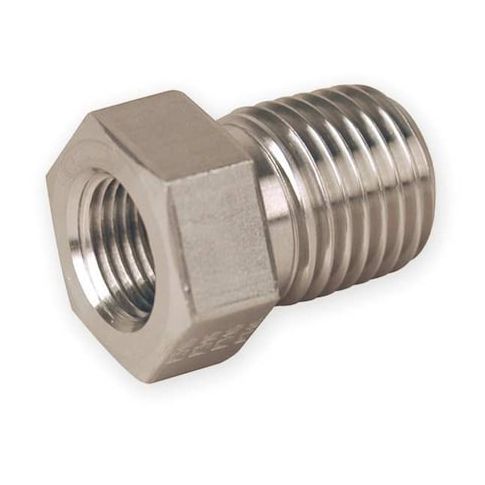

Reducing Bushing, 316 Stainless Steel, 1/2 in x 1/4 in NPT, 6, 400 psi MPN:8-4 RB-SS

The PARKER - 8-4 RB-SS is a stainless steel reducing bushing designed to connect a larger pipe or fitting to a smaller one. Made from 316 stainless steel, it features male and female National Pipe Taper (NPT) threaded connections with a nominal pipe size of 1/2 inch on the male end and 1/4 inch on the female end. Intended for use in air, natural gas, and oil systems per ANSI standards B31.1, B31.3, and B1.20.1. Its dimensions include an overall length of 1.11 inches, with a hex size of 7/8 inch for wrench engagement. Maximum operating pressure: 6,400 psi. Operating temperature range: -425 to 1200 °F. It conforms to ANSI standards B31.1, B31.3, and B1.20.1 for threading and piping applications. Key Features:

• - Material: 316 Stainless Steel
• - Fitting Shape: Reducing Bushing (male to female)
• - Connection Type: MNPT (male) x FNPT (female)
• - Thread Size: 1/2-14 (male) x 1/4-18 (female)
• - Nominal Pipe Size: 1/2 in (Male) x 1/4 in (Female)
• - Maximum operating pressure: 6,400 psi
• - Operating temperature range: -425 to 1200 °F
• - Overall Length: 1.11 inches
• - Hex Size: 7/8 inch
• - Applications: Air, Natural Gas, and Oil systems.
• - No pre-applied thread sealant or included seal
