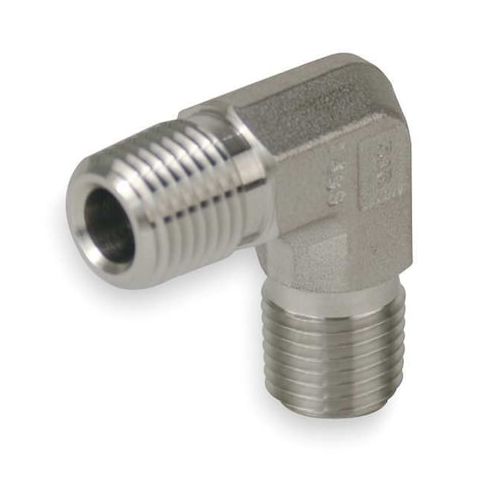

3/8" MNPT 316 SS 90 Degree Elbow MPN:6-6 ME-SS
This 3/8in MNPT 316 SS 90 Degree Elbow from Parker is a high-quality pipe fitting designed for demanding applications. Constructed from durable 316 stainless steel, it offers excellent resistance to corrosion and extreme temperatures. Suitable for use in air, natural gas, and oil service, this fitting provides reliable connections in high-pressure environments. With a maximum operating pressure of 7,200 psi and a temperature range of -425 to 1,200 degrees Fahrenheit, it is ideal for use in industries such as oil and gas, chemical processing, and power generation. Its compact design and MNPT threaded connections make it easy to install and maintain.
Top product features:
- 316 stainless steel construction provides corrosion resistance and durability.
- Male NPT threaded connections on both ends enable secure and leak-free connections to other fittings and pipes.
- Temperature range of -425 to 1,200 degrees Fahrenheit allows for use in high-temperature applications.
Top product applications:
- Air
- Natural Gas
- Oil Service
The PARKER - 6-6 ME-SS is a 90-degree elbow pipe fitting. It is constructed from 316 stainless steel and applications include air, natural gas, and oil service. This fitting features MNPT threaded connections on both ends
- 3/8 inch nominal pipe size. Maximum operating pressure: 7,200 psi, and temperature range: -425 to 1,200 degrees Fahrenheit. The overall length of the fitting is 2 7/16 inches, and it complies with ANSI B31.1, ANSI B31.3, ANSI B1.20.1 standards. Key Features:
- - Material: 316 stainless steel
- - Connection type: Male NPT threaded ends on both sides
- - Pipe size: 3/8 inch nominal pipe size for both connections
- - Maximum operating pressure: 7,200 psi
- - Temperature range: -425 to 1,200 degrees Fahrenheit
- - Overall length: 2 7/16 inches
- - Hex size for wrenching: 3/4 inch
- - Applications include air, natural gas, and oil service
- - Does not include pre-applied thread sealant or sealing components
- - Standards: ANSI B31.1, ANSI B31.3, ANSI B1.20.1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.30
- Package Width: 2.80
- Package Height: 1.70
- Package Weight: 0.95
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
