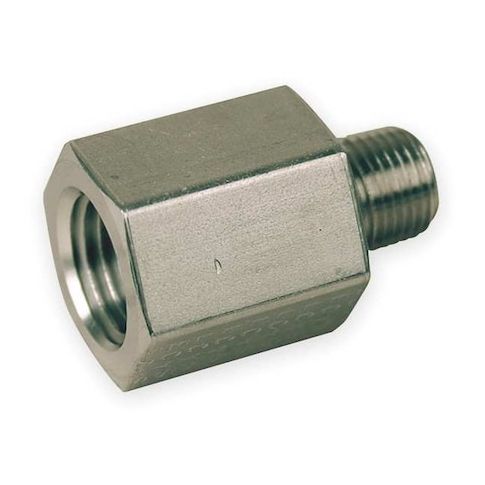

Reducing Adapter, Stainless Steel, 1/8 in FNPT x 1/8 in MNPT, 6, 400 psi MPN:2-2 RA-SS

• The PARKER - 2-2 RA-SS is 316 stainless steel construction for joining 1/8 in NPT female (Side A) to 1/8 in NPT male (Side B). This adapter features a female NPT connection on Side A and a male NPT connection on Side B, both sized 1/8 inch nominal pipe size, providing a transition between these two configurations. Compatible with air, natural gas, and oil systems within the specified operating conditions (6,400 psi max

• -425 to 1,200 °F). It meets the ANSI B31.1 standard.

  Key Features:

  • - Material: 316 stainless steel construction.
  • - Connection types: Female NPT (Side A) to Male NPT (Side B), each 1/8 inch nominal size.
  • - Overall length: approximately 1.03 inches.
  • - Hex size: 5/8 inch for wrenching or installation.
  • - Pressure rating: 6,400 psi maximum operating pressure.
  • - Temperature range: -425 to 1,200 degrees Fahrenheit.
  • - Applications: Compatible with air, natural gas, and oil systems within the specified operating conditions.
  • - Includes no pre-applied thread sealant or sealing components.
  • - Product color: silver.
