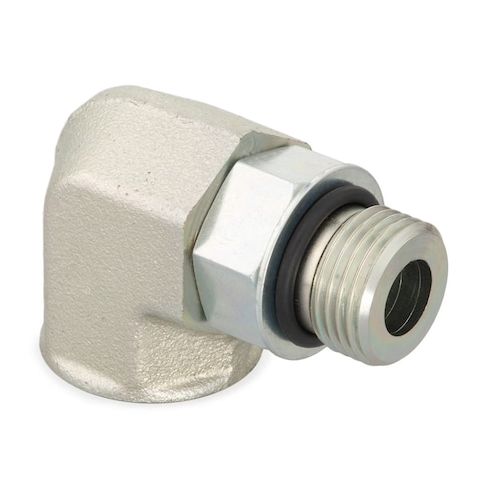

90° Elbow, 316 Stainless Steel, 3/8 in x 3/8 in, Male SAE x Female SAE, 5, 000 psi MPN:6 AOEG5-SS
The Parker 6 AOEG5-SS 90° elbow is a reliable and durable stainless steel pipe fitting designed for use in hydraulic fluid systems. Constructed from 316 stainless steel, it provides excellent corrosion resistance and is rated for a maximum operating pressure of 5,000 psi. The fitting features SAE-type connections on both sides, making it easy to connect and disconnect pipes. Its compact design and high-pressure rating make it ideal for use in a variety of applications, including industrial machinery, automotive systems, and mobile equipment. The Parker 6 AOEG5-SS offers a reliable and efficient solution for changing flow direction in high-pressure systems.
Top product features:
- Connects two pipes at a right angle to facilitate a change in flow direction
- Constructed from 316 stainless steel to provide corrosion resistance
- Includes a nitrile sealing component to ensure a secure connection
Top product applications:
- Hydraulic fluid systems
- Rated for hydraulic fluid systems
- ANSI B1.1, FED-STD-H28/2, SAE J1926, SAE J514
The PARKER - 6 AOEG5-SS is a 90-degree elbow stainless steel pipe fitting designed to connect two pipes at a right angle, facilitating a change in flow direction. Constructed from 316 stainless steel, it is suitable for use with hydraulic fluid systems and 316 stainless steel provides corrosion resistance
- the product is rated for a maximum operating pressure of 5,000 psi. The fitting features SAE-type connections on both sides, with a 3/8 inch nominal pipe size, where Side A is male and Side B is female. It includes a nitrile sealing component. Key Features:
- - Material: 316 stainless steel.
- - Connection types: SAE on both sides with male gender on Side A and female gender on Side B.
- - Nominal pipe size: 3/8 inch on both sides.
- - Maximum operating pressure: 5,000 psi.
- - Seal: Includes a nitrile sealing component.
- - Hex size: 7/8 inch for wrenching.
- - Applications: Rated for hydraulic fluid systems.
- - Standards compliance: ANSI B1.1, FED-STD-H28/2, SAE J1926, SAE J514.
- - Does not include pre-applied thread sealant.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 17 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.00
- Package Width: 3.00
- Package Height: 2.00
- Package Weight: 0.23
