1/8" Compression x MNPT Brass 90 Degree Elbow 10PK MPN:169HD-2-2
1/8" Compression x MNPT Brass 90 Degree Elbow 10PK

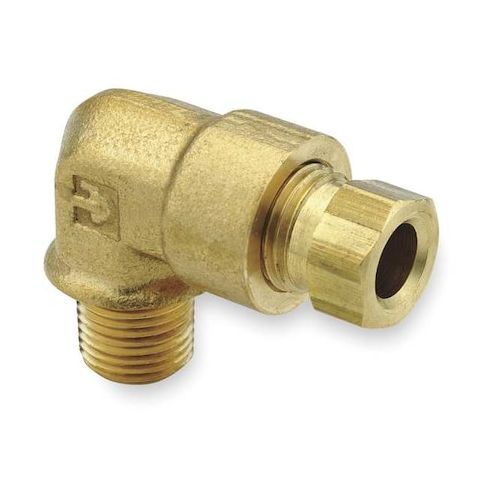

This 1/8in Compression x MNPT Brass 90 Degree Elbow from Parker is a high-duty fitting designed for use in oil applications where a 90-degree change in direction is required. The brass material provides excellent corrosion resistance and durability, while the compression connection ensures a secure and leak-free seal. With a maximum operating pressure of 4,300 psi and temperature of 250°F, this fitting is suitable for a wide range of industrial and commercial applications, including hydraulic systems, pneumatic systems, and more. Its compact design and easy installation make it an ideal choice for use in tight spaces and demanding environments.
Top product features:
- Compression fitting for easy connection and disconnection
- 90-degree elbow design for efficient piping and routing
- Brass material for high-pressure and high-temperature resistance
Top product applications:
- Oils
- Oils
- SAE J524
Male Elbow, 90 Degrees, Application Oils, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1/8 in, Material Grade CA360, Maximum Operating Pressure 4,300 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 31/32 in, Specific Fitting Shape 90 Degrees Elbow Adapter, Fitting Side B Pipe Size 1/8 in, Series Hi-Duty, System of Measurement Imperial, Standards SAE J524
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 25 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 3.00
- Package Width: 1.80
- Package Height: 1.60
- Package Weight: 0.50
Product info last updated on February 18, 2026 8:58am UTC
Category: Pipes, Valves and Fittings
