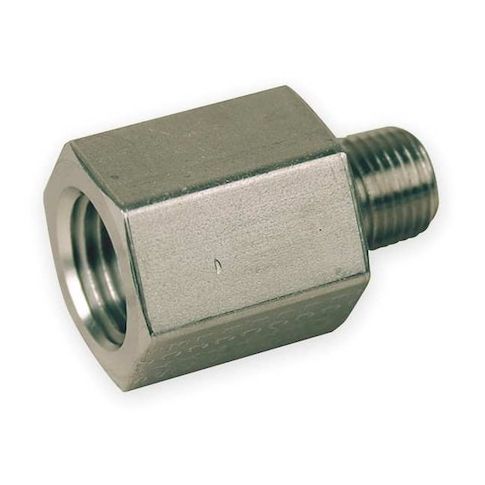

3/8" x 1/8" FNPT x MNPT 316 SS Reducing Adapter MPN:6-2 RA-SS

The PARKER - 6-2 RA-SS is a 316 stainless steel reducing adapter designed to connect pipes or fittings of different diameters while providing a sealed joint when installed with an appropriate thread sealant per standard installation practices. It features female NPT threads on the 3/8" side and male NPT threads on the 1/8" side, intended for use in air, natural gas, and oil systems. This adapter has an overall length of 1.25 inches and a silver finish, for connection in industrial fluid and gas piping systems, while rated for operation within a temperature range of -425 to 1200 °F. The product meets the ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards and supports a maximum operating pressure of 5300 psi. Key Features:

• - Material: 316 stainless steel.
• - Connection Type: Female NPT (3/8") x Male NPT (1/8").
• - Pressure Rating: Maximum operating pressure of 5300 psi.
• - Temperature Range: -425 to 1200 °F.
• - Length: 1.25 inches overall length.
• - Hex Size: 7/8 inch wrench flat for installation.
• - Applications: Intended for use in air, natural gas, and oil systems.
• - Thread Size: 3/8-18 (female) x 1/8-27 (male).
• - Does not include pre-applied thread sealant or seals.
