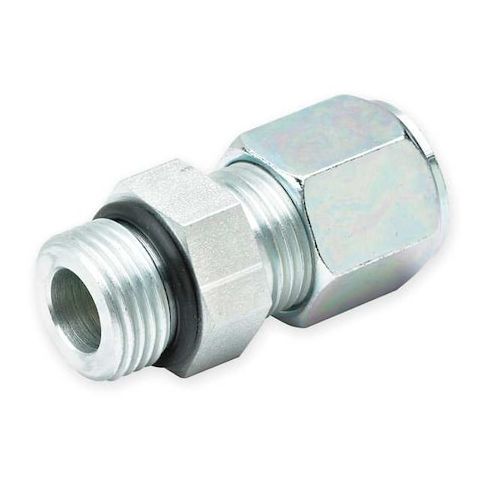

3/8" Compression x Male SAE-ORB 316 SS Straight Connector MPN:6-8 F5BU-SS
3/8" Compression x Male SAE-ORB 316 SS Straight Connector
This 3/8in compression x male SAE-ORB 316 SS straight connector from Parker is a reliable solution for hydraulic systems. Its flangeless bite design ensures a secure connection, while its 316 stainless steel construction provides excellent corrosion resistance and durability. With a maximum operating pressure of 6,000 psi and temperature of 1,200°F, this connector is suitable for high-pressure and high-temperature applications. It's ideal for use in industries such as oil and gas, chemical processing, and power generation, where reliability and efficiency are crucial. The connector's compact design and ease of installation make it a convenient choice for system integrators and maintenance personnel.
Top product features:
- Compression fitting adapter connects to 3/8in tube
- Straight shape allows for easy installation and reduced space requirements
- 316 stainless steel construction provides resistance to corrosion and high-temperature applications up to 1,200 Degrees F
Top product applications:
- Hydraulic systems
- High-temperature applications
- Industrial pipe connections
Compression Fitting Adapter, Application Hydraulics, Fitting Side A Connection Type Male Flareless Bite, Fitting Side B Connection Type Male SAE-ORB, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 3/8 in, Material Grade 316, Maximum Operating Pressure 6,000 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 1 9/32 in, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 3/8 in, Compatible Fitting Brands Ferulok(R), Thread Size B 3/4-16
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 2.20
- Package Weight: 0.15
Product info last updated on January 31, 2026 8:51am UTC
Category: Pipes, Valves and Fittings
