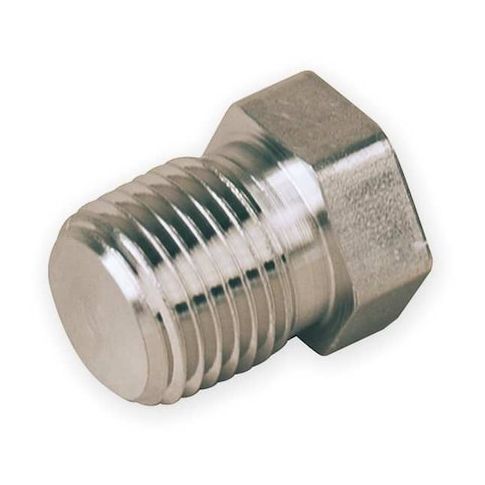

1/8" MNPT 316 SS Hex Head Plug MPN:2 PH-SS
The Parker 2 PH-SS 1/8in MNPT 316 SS Hex Head Plug is a reliable and durable solution for closing off pipe ends, fittings, or ports in high-pressure applications. Constructed from 316L stainless steel, it provides exceptional corrosion resistance and temperature tolerance, making it suitable for use in extreme environments. With a solid construction and pressure-tight seal, this plug ensures reliable performance in industrial settings, such as chemical processing, oil and gas, and power generation. Its compatibility with ANSI standards and ability to withstand high pressures and temperatures make it an ideal choice for demanding applications.
Top product features:
- The plug provides a pressure-tight seal when installed with appropriate sealing components and in accordance with standard installation practices.
- The plug is designed to close off the end of a pipe, fitting, or port with a threaded connection.
- The plug is constructed from 316L stainless steel with a bright finish, offering corrosion resistance and temperature tolerance within the specified temperature range.
Top product applications:
- Pipe fitting closure
- Filling a threaded hole or port
- Closing off a pipe or fitting with a threaded connection
The PARKER - 2 PH-SS is a stainless steel hex head plug designed to close off the end of a pipe, fitting, or port with a threaded connection. It is constructed from 316L stainless steel with a bright finish
- corrosion resistance and temperature tolerance are inherent to the material and it operates within the specified temperature range (-425°F to 1200°F). The plug has a nominal pipe size of 1/8 in and a solid construction, providing a pressure-tight seal when installed with appropriate sealing components and in accordance with standard installation practices. It connects via a 1/8 in -27 MNPT thread and is compatible with industrial standards ANSI B31.1, ANSI B31.3, and ANSI B1.20.1. Key Features:
- - Material: 316L stainless steel with bright finish
- - Connection type: 1/8 in -27 MNPT threaded
- - Nominal pipe size: 1/8 in
- - Overall length: 9/16 in (0.56 in)
- - Hex drive size: 7/16 in across flats
- - Maximum operating pressure: 9,100 psi
- - Maximum pressure rating: 9,700 psi
- - Temperature range: -425°F to 1200°F
- - Does not include pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 2.80
- Package Height: 1.30
- Package Weight: 0.22
