1/2" SAE-ORB x ORFS 316 SS Straight Thread Connector MPN:8 F5OLO-SS

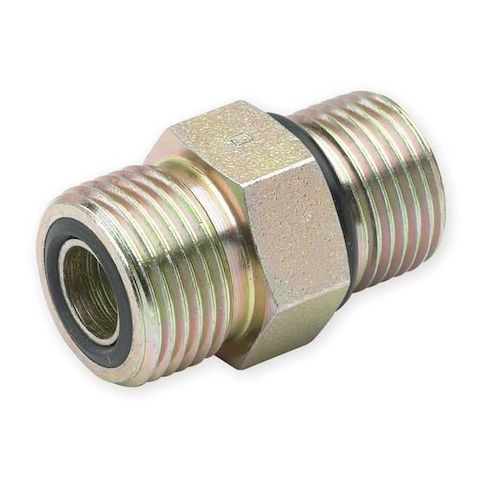

1/2" SAE-ORB x ORFS 316 SS Straight Thread Connector
This 1/2in SAE-ORB x ORFS 316 SS Straight Thread Connector from Parker is a high-performance compression fitting adapter designed for hydraulic applications. Its stainless steel construction ensures durability and resistance to corrosion, while the O-Ring face seal provides a secure and leak-free connection. With a maximum operating pressure of 9,200 psi and temperature of 1,200°F, this connector is suitable for demanding industrial environments. Its compact design and versatility make it ideal for use in a wide range of hydraulic systems, including those in the aerospace, automotive, and manufacturing industries.
Top product features:
- Compression Fitting Adapter provides a secure connection between two fittings using an O-Ring Face Seal.
- 316 Stainless Steel construction ensures high resistance to corrosion and durability.
- The product has a Maximum Operating Pressure of 9,200 psi, allowing for high-pressure applications.
Top product applications:
- Hydraulic systems
- Industrial process control
- High-temperature applications
Compression Fitting Adapter, Application Hydraulics, Fitting Side A Connection Type Male O-Ring Face Seal, Fitting Side B Connection Type Male SAE-ORB, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 1/2 in, Material Grade 316, Maximum Operating Pressure 9,200 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 1 7/16 in, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 1/2 in, Compatible Fitting Brands Seal-Lok(TM), Thread Size B 3/4-16
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.80
- Package Width: 1.10
- Package Height: 0.11
- Package Weight: 0.15
