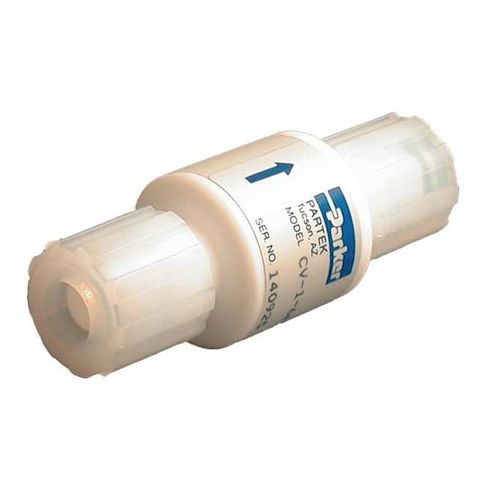

Check Valve, CV-1 Series, 3/8 in, Parflare Male x Male, Inline, PTFE Body MPN:CV-1-6666
This 3/8in PTFE Check Valve from Parker is a reliable and versatile solution for various applications, including corrosives and general-purpose use. Its single-flow design and inline mechanism ensure smooth operation, while its PTFE body and spring materials provide exceptional resistance to chemicals and extreme temperatures. With a cracking pressure range of 0.250 to 0.750 psi and a maximum temperature of 266°F, this valve can handle demanding conditions. Its compact size and lightweight design make it ideal for use in a variety of industries, including pharmaceuticals, food processing, and chemical manufacturing.
Top product features:
- PTFE construction for resistance to corrosion and chemical damage
- Single flow design allows for one-way flow of fluid
- Cracking pressure of 0.250 to 0.750 psi ensures reliable valve operation
Top product applications:
- Corrosives
- General Purpose
- Steam
PARKER CV-1-6666 is an inline check valve for one-way flow control in compatible general-purpose and corrosive media applications. It features a single-flow design with PTFE body, check mechanism, seat, and spring materials, along with a Viton seal. This valve has 3/8 in male Parflare x male Parflare connections, a cracking pressure of 0.25 to 0.75 psig, a maximum operating pressure of 120 psig, and an operating temperature range of 50 Degrees F to 266 Degrees F.
Key Features:
- Valve type: Inline check valve
- Applications/media: General-purpose and corrosive media
- Connection size: 3/8 in nominal valve size
- Connections: Male Parflare x male Parflare
- Flow design: Single
- Cracking pressure: 0.250 to 0.750 psi
- Maximum operating pressure: 120 psig
- Operating temperature range: 50 Degrees F to 266 Degrees F
- Materials: PTFE body, check mechanism, seat, and spring
- Viton seal
- Surface roughness: 24 Ra
- Overall dimensions: 4 in length
- 1 15/64 in height and width
- Silent check: Supplier-designated silent check feature
- Valve series: CV-1
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 1.25
- Package Height: 1.25
- Package Weight: 0.20
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
