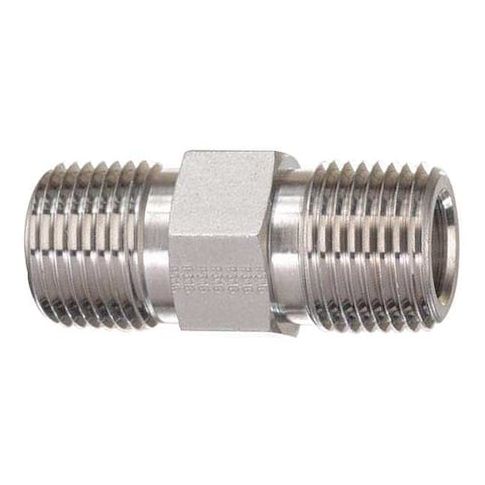

1/2 in Male NPT 316 Stainless Steel Hex Nipple, 1.89 in Length, 6600 psi Max Pressure MPN:8-8 MHN-SS
The PARKER 8-8 MHN-SS is a reliable and durable stainless steel hex nipple designed for connecting two female-threaded components with 1/2 inch MNPT threads. Its compact 1.89 inch length and 316 stainless steel construction provide excellent corrosion resistance and temperature range from -425 to 1200 °F. Suitable for conveying air, natural gas, and oil in piping systems, this fitting meets ANSI standards and withstands up to 6,600 psi maximum operating pressure. Ideal for a wide range of applications, including industrial, commercial, and residential settings, this nipple ensures a secure and leak-free connection.
Top product features:
- Material: 316 stainless steel for corrosion resistance
- Connection type: Male National Pipe Thread (MNPT) on both ends
- Maximum operating pressure: 6,600 psi
Top product applications:
- Connects two female-threaded components in 1/2 inch MNPT piping systems
- Conveys air in piping systems using 1/2 inch MNPT connections
- Used in oil piping systems with 1/2 inch MNPT connections
The PARKER - 8-8 MHN-SS is a stainless steel hex nipple designed to connect two female-threaded components, both having 1/2 inch MNPT threads. This 316 stainless steel fitting features a hexagonal center section to provide a wrenching surface for installation and removal. Its compact length of 1.89 inches provides 316 stainless steel construction. Temperature range: -425 to 1200 °F. The fitting complies with ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards and has a maximum operating pressure of 6,600 psi.
Key Features:
- - Material: 316 stainless steel for corrosion resistance
- - Connection type: Male National Pipe Thread (MNPT) on both ends
- - Nominal pipe size: 1/2 inch for both connections
- - Thread size: 1/2-14 TPI
- - Overall length: 1.89 inches (1 7/8 in)
- - Hex size (across flats): 7/8 inch for wrench engagement
- - Maximum operating pressure: 6,600 psi
- - Temperature range: -425 to 1200 °F
- - Conveys air, natural gas, and oil in piping systems using 1/2 inch MNPT connections
- - Does not include pre-applied thread sealant or seals
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 2.90
- Package Height: 1.90
- Package Weight: 0.91
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
