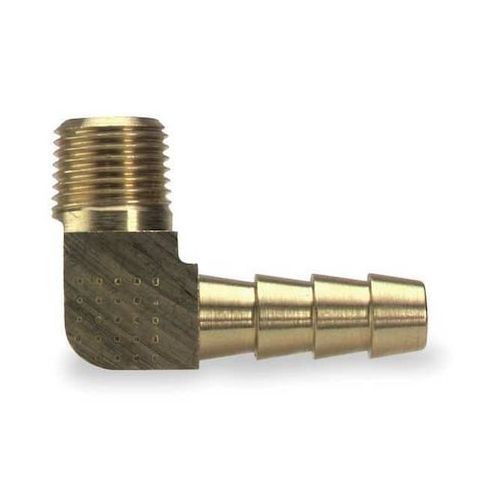

Hose Barb, 3/8 In Barb, 1/4 In MNPT, Brass MPN:129HB-6-4
The Parker 129HB-6-4 Hose Barb is a high-performance fitting designed for use in air powered tools, coolant lines, and fuel lines. Its rigid structure and 90-degree elbow design allow for precise flow direction and optimal system performance. Constructed from durable brass, this fitting can withstand up to 150PSI, making it ideal for demanding applications. With its single-use design, this fitting ensures reliable connections and minimizes the risk of leaks or contamination. Suitable for use in a variety of industries, including manufacturing, construction, and oil and gas, the Parker 129HB-6-4 Hose Barb delivers reliable performance and long-lasting durability.
Top product features:
- Adjusts the flow direction of the hose lines with a 90 Degrees Elbow structure.
- Rated to handle up to 150PSI of internal working pressure.
- Constructed primarily of Brass with a CA379 grade, contributing to its durability.
Top product applications:
- Air Powered Tools
- Coolant Lines
- Fuel Lines
The PARKER - 129HB-6-4, classified as a Push On Hose Fitting, is a specifically engineered "Barbed Hose Fitting". This commercial-grade tool is optimally intended for Air Powered Tools, Coolant Lines, and Fuel Lines. The fitting demonstrates a rigid structure, morphing into a 90 Degrees Elbow, which adjusts the flow direction of the hose lines. Its construction consists primarily of Brass with a CA379 grade, contributing to its durability per its material properties.
Key Features:
- Barb Size of 3/8 in - This dictates the internal diameter of the hose line for attachment purposes.
- Fitting Connection Type: Hose Barb x NPT - Denotes the manner in which the fitting links to the hose and the pipe.
- Fitting Material: Brass x Brass - Reveals the material of the fitting and any distinguished mating components.
- Fitting Size: 3/8 in x 1/4 in - Represents the dimensions of the fitting and its components.
- High Max. Pressure - Rated at 150PSI, this demonstrates the exceptional internal working pressure the hose fitting is rated to handle up to during normal operations.
- Hose Fitting Sizes - A size of 3/8 in and B size of 1/4 in
- Details the fitting sizes for distinct ends of the hose.
- Thread Size: 1/4 in - Specifies the precise category size of the thread on the fitting.
- Single-use only - The fitting is not designed for reuse after initial use.
- Nipple Grip Type: No Knurl - Signifies the lack of a grip pattern on the nipple of the fitting.
- Vacuum Rating: Not Rated - Confirms that the fitting hasn't been given a vacuum rating.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.40
- Package Width: 2.70
- Package Height: 1.40
- Package Weight: 0.85
