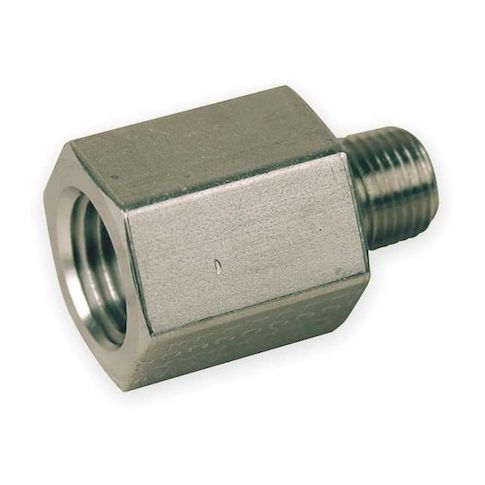

1/2" x 1/8" FNPT x MNPT 316 SS Reducing Adapter MPN:8-2 RA-SS

• The PARKER - 8-2 RA-SS is a stainless steel reducing adapter designed to join pipes or fittings of different diameters, provides a 1/2" female NPT to 1/8" male NPT connection. Constructed from 316 stainless steel, it is suitable for fluids and gases compatible with 316 stainless steel and the 1/2" NPT to 1/8" NPT connection. It has female 1/2-14 NPT on the larger end and male 1/8-27 NPT on the smaller end. It conforms to ANSI standards B31.1, B31.3, and B1.20.1. Key Features:


  • - Material Grade: 316 Stainless Steel
  • - Pipe Size: 1/2" female NPT x 1/8" male NPT
  • - Overall Length: 1.5 in
  • - Maximum Operating Pressure: 5,200 psi
  • - Operating Temperature Range: -425 Degrees to 1200 Degrees F
  • - Thread Size: 1/2-14 x 1/8-27
  • - Hex Size for Wrench: 1-1/8 in
  • - Color: Silver
  • - Applications: Air, Oil
  • Natural gas usage should be evaluated per applicable standards and codes.
  • - Does not include pre-applied thread sealant or additional sealing components
