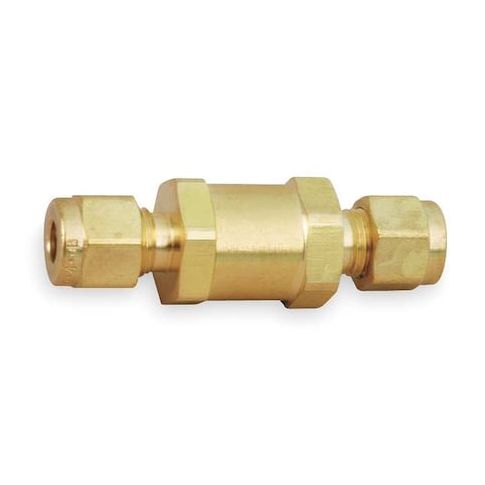

1/4" A-LOK® Brass Instrumentation Check Valve MPN:4A-C4L-10-BN-B
This 1/4in A-LOK Brass Instrumentation Check Valve from Parker is a reliable solution for various applications, including process control, HVAC, and oil and gas industries. Its inline poppet design ensures smooth flow and precise control, while its high-temperature resistance up to 275°F makes it suitable for demanding environments. The valve's compression x compression connection type and 10 psi cracking pressure provide secure and efficient operation. Its compact size and lightweight design make it easy to install and maintain, reducing downtime and increasing productivity. Ideal for use in horizontal or vertical orientations, this valve offers a reliable and efficient solution for a wide range of applications.
Top product features:
- Inline poppet design for reduced fluid flow restriction
- Nitrile seal material for improved fluid resistance and durability
- Cracking pressure of 10 psi for precise control over fluid flow
Top product applications:
- Steam Traps
- Air Conditioning Systems
- Gas Distribution Systems
PARKER 4A-C4L-10-BN-B is a 1/4 in A-LOK brass instrumentation check valve designed for one-way flow control in fluid and gas lines. This inline poppet valve features compression x compression connections and a 10 psi cracking pressure for one-way flow control in instrumentation and process systems. It can be mounted horizontally or vertically and has an operating temperature range of -30 Degrees F to 275 Degrees F.
Key Features:
- Brass body construction for instrumentation check valve service
- 1/4 in compression x compression A-LOK connections on both sides
- Inline poppet design with single flow path
- Cracking pressure: 10 psi
- Flow coefficient: Cv 0.75
- Maximum operating pressure: 3,000 psi
- Maximum water pressure: 3,000 psi CWP / 3,000 psi @ 100 Degrees F
- Seal material: Buna-N/Nitrile
- Seat material: FKM, Nitrile
- Spring material: 316 stainless steel
- Mounting orientation: horizontal or vertical
- Overall length: 2.42 in
- Hex size: 3/4 in
- Standards: ASTM B16
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 1.50
- Package Height: 4.60
- Package Weight: 0.20
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
