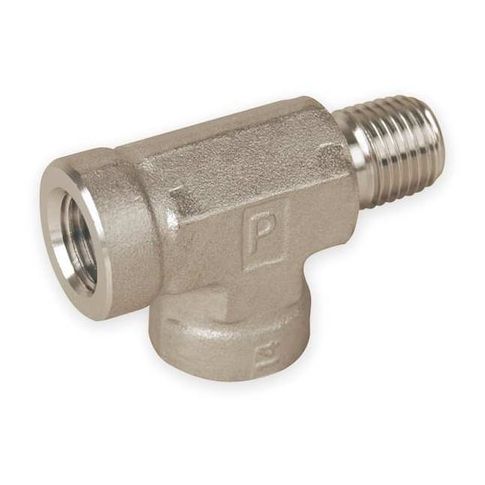

316 Stainless Steel Street Tee, 1/2 in FNPT x MNPT x FNPT, 4, 500 psi Max Pressure MPN:8-8-8 ST-SS
Connect and distribute fluids with ease in harsh environments using the PARKER 8-8-8 ST-SS 316 Stainless Steel Street Tee. This robust fitting features a T-shaped design, connecting three pipe runs with a 90-degree branch, and is constructed from 316 stainless steel for inherent corrosion resistance. Ideal for use in high-pressure applications, it meets ANSI standards and is rated for operation within a wide temperature range. Suitable for use in industrial, commercial, and aerospace settings, this fitting is perfect for applications requiring precise fluid distribution and management in demanding environments.
Top product features:
- 316 Stainless Steel construction provides inherent corrosion resistance.
- The T-shaped design connects three pipe runs with a 90-degree branch.
- Rated for operation within a temperature range of -425 to 1200 °F.
Top product applications:
- Industrial piping systems for process applications
- Chemical processing plants for high-pressure connections
- High-temperature steam distribution systems
The PARKER - 8-8-8 ST-SS is a 316 stainless steel Street Tee pipe fitting featuring a T-shaped design that connects three pipe runs, Three-port pipe fitting with a 90-degree branch. Material: 316 Stainless Steel and is designed with threaded connections in a FNPT x MNPT x FNPT configuration, 316 stainless steel construction with inherent corrosion resistance. It meets ANSI B31.1, B31.3, and B1.20.1 standards and Rated for operation within the specified temperature range: -425 to 1200 °F, with a maximum operating pressure of 4500 psi.
Key Features:
- - Material: 316 Stainless Steel
- - Pipe Size: 1/2 inch nominal diameter on all three ends
- - Connection Type: Female NPT on Side A and Side C, Male NPT on Side B
- - Thread Size: 1/2-14
- - Overall Length: 2 11/16 inches
- - Hex Size: 1-1/16 inches for wrenching
- - Maximum Operating Pressure: 4500 psi
- - Rated for operation within the specified temperature range: -425 to 1200 °F
- - No pre-applied thread sealant or included seal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.90
- Package Height: 1.20
- Package Weight: 0.50
