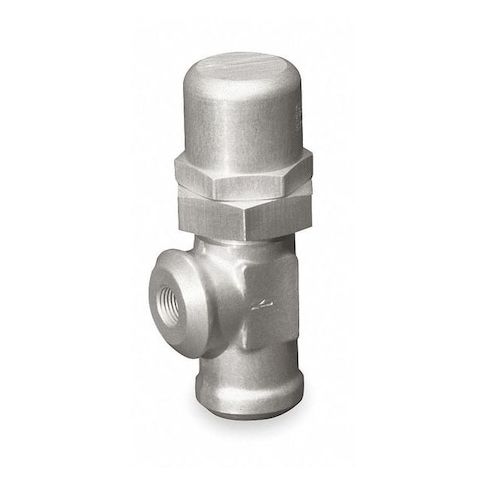

Pressure Control Valve, 3/4 NPT, 360 PSI MPN:637B-5-3/4-2
Pressure Control Valve, 3/4 NPT, 360 PSI
The Parker 3/4 NPT Pressure Control Valve is a reliable and efficient solution for managing pressure in various industrial applications. Designed for use in systems where precise pressure control is critical, this valve features a brass body and can withstand pressures up to 450 psi. With a maximum flow rate of 15 gpm, it is suitable for a range of applications, including hydraulic and pneumatic systems, as well as water treatment and chemical processing. Its compact size and high-pressure rating make it an ideal choice for use in tight spaces and demanding environments.
Top product features:
- Control valve regulates pressure up to 360 psi
- Check valve activates at 360 psi to prevent backflow
- Flow rate is limited to 15 gpm to prevent excessive fluid flow
Top product applications:
- Oil and Gas Industry: The pressure control valve is used to regulate and control pressure in oil and gas wells, pipelines, and processing equipment.
- Hydraulic Systems: The valve is used to control pressure and flow rate in hydraulic systems, such as those used in manufacturing, construction, and agricultural equipment.
- Chemical Processing: The valve is used to regulate and control pressure in chemical processing equipment, such as reactors, pumps, and heat exchangers, to ensure safe and efficient operation.
Pressure Control Valve, Pressure - Maximum 450 psi, Flow Rate - Maximum 15 gpm, Body Material Brass, Pressure - Minimum 235 psi, Port Connection Type NPT, Port Connections Inlet, Outlet, Pressure Setting - Maximum 360 psi, Check Valve Cracking Pressure 360 psi, Overall Width 1.75 in, Port Connection Size 3/4 in, Actuation Mechanism Pressure, Port Connection Dash Size -5, Operating Temperature - Maximum 250 Degrees F, Operating Temperature - Minimum -40 Degrees F, Overall Height 5.91 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.80
- Package Width: 4.00
- Package Height: 1.80
- Package Weight: 2.28
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on January 20, 2026 12:06am UTC
Category: Hydraulic Cylinders and Equipment
