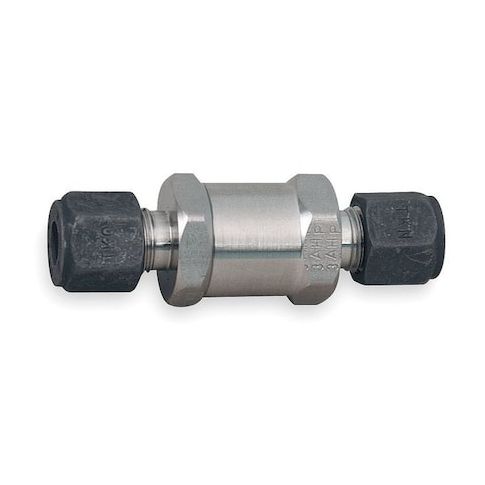

1/4" CPI® Stainless Steel Instrumentation Check Valve MPN:4Z-C4L-10-SS
This 1/4in CPI Stainless Steel Instrumentation Check Valve from Parker is a reliable and durable solution for a wide range of applications. Its inline poppet design ensures precise control and minimizes flow restriction, making it ideal for use in high-pressure steam and water systems. The valve's 316 stainless steel body and fluorocarbon seal provide excellent resistance to corrosion and wear, allowing for use in extreme temperatures from -15 to 400°F. Suitable for use in industrial, commercial, and pharmaceutical settings, this check valve is a trusted choice for applications where precision and reliability are paramount.
Top product features:
- Stainless Steel construction for corrosion resistance
- Poppet mechanism for precise control of fluid flow
- Fluorocarbon seal for reliable sealing and long-lasting performance
Top product applications:
- Chemical Processing
- Steam and Condensate Systems
- Oil and Gas Production
PARKER 4Z-C4L-10-SS is a 1/4 in instrumentation check valve for one-way flow control in small-bore fluid and gas lines. This inline poppet valve uses compression x compression CPI(R) connections and a 316 stainless steel body. It is intended for one-way flow control in instrument and process systems.
Key Features:
- Instrumentation check valve with inline poppet mechanism and single-flow design
- 1/4 in nominal valve size with 1/4 in connections on both sides
- Compression x compression CPI(R) connections
- 316 stainless steel body
- FKM / fluorocarbon seal and seat material
- 316 stainless steel spring
- 10 psi cracking pressure
- Cv 0.75
- flow rating 0.75 gpm
- 6,000 psi maximum operating pressure
- 6,000 psi CWP
- 6,000 psi maximum water pressure at 100 Degrees F
- Temperature range: -15 Degrees F to 400 Degrees F
- Horizontal or vertical mounting orientation
- 2.42 in overall length
- 3/4 in hex size
- ASTM A 276
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.50
- Package Height: 4.60
- Package Weight: 0.19
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
