1/2" CPI® Stainless Steel Instrumentation Check Valve MPN:8Z-C8L-10-SS
1/2" CPI® Stainless Steel Instrumentation Check Valve

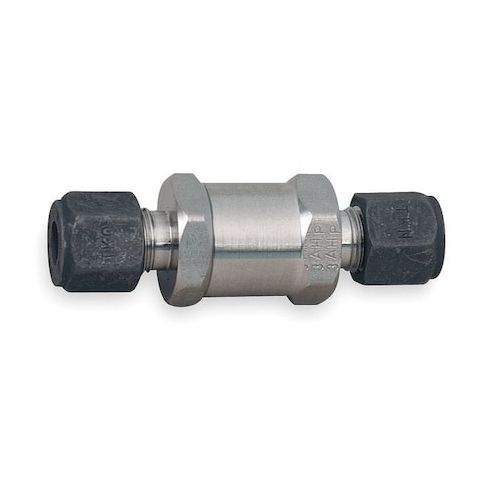

PARKER 8Z-C8L-10-SS is a 1/2 in instrumentation check valve with an inline poppet design for one-way flow in small-bore fluid and gas lines. It features compression x compression CPI(R) connections, an FKM fluorocarbon seal and seat, and a 10 psi cracking pressure. The valve is constructed with a 316 stainless steel body and 316 stainless steel spring and is designed for one-way flow in compatible instrument and process systems.
Key Features:
- Valve type: Instrumentation check valve with inline poppet mechanism
- Nominal valve size: 1/2 in
- Connection size: 1/2 in x 1/2 in
- Connection type: Compression x Compression
- Connection style: CPI(R)
- Body material: 316 stainless steel
- Seal and seat material: FKM / Fluorocarbon
- Spring material: 316 stainless steel
- Cracking pressure: 10 psi
- Flow rating: 3.3 gpm
- Cv: 3.3
- Maximum operating pressure: 6,000 psi
- Maximum water pressure: 6,000 psi CWP / 6,000 psi at 100 degrees F
- Operating temperature range: -15 degrees F to 400 degrees F
- Mounting orientation: Horizontal or vertical
- Overall length: 4.08 in
- Standard: ASTM A276
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 1.50
- Package Height: 4.50
- Package Weight: 0.81
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Product info last updated on March 14, 2026 4:25pm UTC
Category: Pipes, Valves and Fittings
