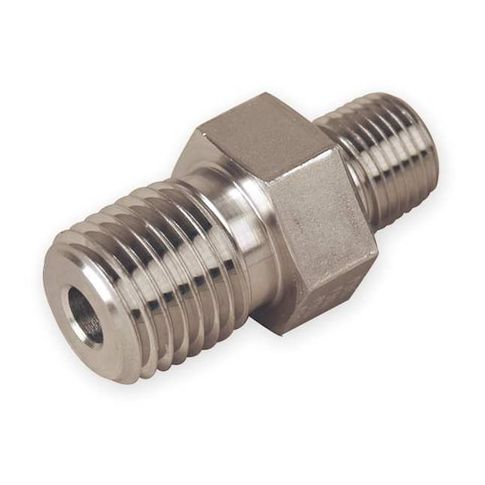

316 Stainless Steel Hex Nipple, 3/8 in x 1/4 in Male NPT, 1.45 in Length MPN:6-4 MHN-SS
The PARKER 6-4 MHN-SS 316 stainless steel hex nipple is a versatile and reliable component for connecting female-threaded components in various high-pressure applications. Its male NPT threads on both ends ensure a secure and leak-free connection, while the hexagonal section enables easy wrench tightening. Suitable for use in air, natural gas, and oil systems, this fitting operates within a maximum pressure of 7,200 psi and a temperature range of -425°F to 1,200°F. Ideal for industries such as aerospace, chemical processing, and power generation, this product conforms to ANSI standards and offers a compact design with a length of 1.45 inches.
Top product features:
- 316 stainless steel construction provides resistance to corrosion
- Hexagonal section allows for wrench tightening
- Rated for operation with air, natural gas, and oil systems within specified maximum pressure and temperature ranges
Top product applications:
- Air systems
- Natural gas systems
- Oil systems
The PARKER - 6-4 MHN-SS is a 316 stainless steel hex nipple designed to connect two female-threaded components using male NPT threads on both ends. It features a hexagonal section for wrench tightening and rated for operation with air, natural gas, and oil systems within the specified maximum pressure and temperature ranges. The fitting has a compact length of 1.45 inches and is rated for a maximum operating pressure of 7,200 psi with a temperature range from -425 degrees to 1,200 degrees Fahrenheit. This product conforms to ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 standards. Key Features:
- - Material: 316 stainless steel
- - Connection Type: MNPT (male NPT) on both ends
- - Nominal Pipe Sizes: 3/8" on Side A and 1/4" on Side B
- - Thread Size: 3/8-18 on Side A x 1/4-18 on Side B
- - Overall Length: 1.45 in (1 7/16")
- - Hex Size (wrenching flats): 3/4"
- - Maximum Operating Pressure: 7,200 psi
- - Temperature Range: -425°F to 1,200°F
- - Includes no pre-applied thread sealant or additional seal
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.60
- Package Width: 2.80
- Package Height: 1.00
- Package Weight: 0.47
- California Prop 65 Warning: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
