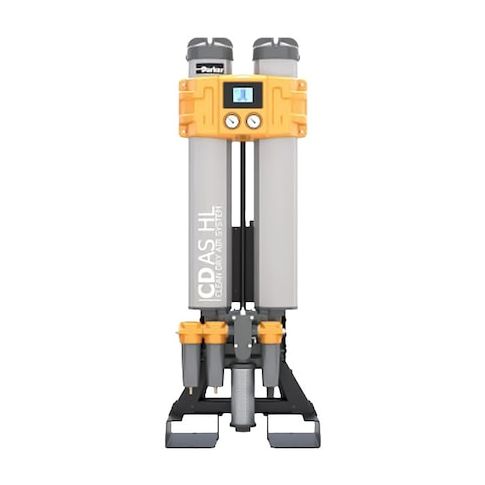

Desiccant Dryer MPN:CDASHL070-40N16AE
Desiccant Dryer
The Parker Desiccant Dryer is a reliable and efficient solution for removing moisture from compressed air systems. With a maximum flow rate of 97 cfm and operating temperature of 122°F, this dryer is ideal for use in industrial and commercial applications where high-pressure air is required. Its compact design and low pressure drop of 5 psi make it a great option for space-constrained facilities. The dryer's ability to maintain a dew point of -40°F ensures that compressed air is dry and free from contaminants, reducing the risk of equipment damage and improving overall system performance.
Top product features:
- Maximum Flow Rate of 97 cfm
- Operating Temperature Range of -40 to 122 Degrees F
- Pressure Drop of 5 psi
Top product applications:
- Pharmaceutical and Biotechnology Industry: Desiccant Dryer is used to remove moisture from compressed air used in processes such as packaging and filling.
- Oil and Gas Industry: The Desiccant Dryer is used to dry compressed air used for pneumatic tools and equipment in drilling and production operations.
- Food and Beverage Industry: Desiccant Dryer is used to dry compressed air used in processes such as packaging, bottling, and canning.
Desiccant Dryer, Maximum Flow Rate 97 cfm, Voltage 85 to 265V, Phase Single, Maximum Operating Pressure 232 psig, Maximum Operating Temperature 122 Degrees F, Air Inlet Size 3/4 in, Air Inlet Type NPT, Full Load Current 2 A, ISO Class 2, Dew Point -40 Degrees F, Pressure Drop 5 psi, Air Inlet Gender Not Applicable, Air Outlet Gender Not Applicable, Air Outlet Size Not Applicable, Air Outlet Type Not Applicable, Body Material Not Applicable, Bowl Capacity Not Applicable
Additional Information
- Country of Origin: GB
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 28.40
- Package Width: 24.50
- Package Height: 88.60
- Package Weight: 428.00
Product info last updated on February 26, 2026 6:56am UTC
Category: Compressors, Air Tanks and Pneumatic Parts
