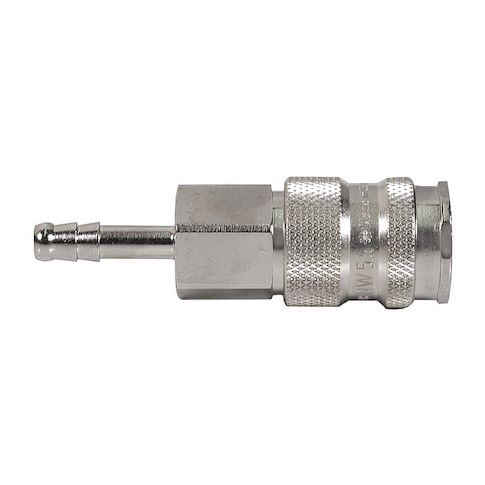

Quick Connect Socket, Brass, 2 13/16" L MPN:23KATF06MPN

• The PARKER - 23KATF06MPN is a quick connect socket designed for quick-connect coupling

• includes an internal poppet valve intended to reduce fluid/air loss during connection and disconnection. It functions as the female half of a quick-connect coupling, accepting and locking the matching plug through a push-to-connect action with a spring-loaded release sleeve. The fitting includes an internal poppet valve that reduces fluid/air loss during rapid, tool-free connection and disconnection. Made of brass with a nickel-plated finish, it is suitable for use with industrial interchange systems and fits hoses with a 1/4 in inner diameter using a barbed male hose fitting connection.

  Key Features:


  • - Barb Size: 1/4 in
  • Hose Fitting Size: 1/4 in
  • Hose I.D. compatibility: 1/4 in
  • - Coupling Component: Socket with ball locking for retention when the matching plug is engaged
  • - Material: Brass with nickel-plated finish for corrosion resistance
  • - Includes Valve: Yes, with poppet valve type for flow control
  • - Maximum Working Pressure: 300 psi at 70°F
  • - Maximum Flow Rate: 36.5 scfm
  • - Overall Length: 2.81 in
  • - Seal Material: Nitrile
  • - Temperature Range: -4°F to 212°F
  • - Standards: A-A-59439
  • ISO 6150-B
  • MIL-C-4109F
  • - Includes Components: Locking balls and valve spring
  • - Connection Type: Hose Barb
  • Hose Fitting Gender: Male
